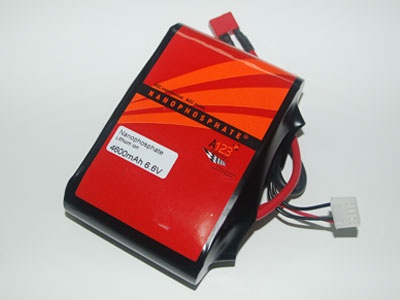

A123 4600mAh 2s2p LiFePO4 Battery Pack

A123 4600mAh 2s2p LiFePO4 Battery Pack - Craft

400063-003

Click to enlarge image

A123 4600mAh 2s2p LiFePO4 battery pack with a nominal voltage of 6.6V. The total pack weight is 330 grams and the pack comes complete with female Deans Ultra plug and JST-PQ balance tap connector.

These packs are capable of 30C continuous discharge, which is 138 amps for this pack size.

Although heavier than the equivalent Li-Poly based battery, A123 packs are generally more tolerant to varying temperatures and charge/discharge conditions than LiPo based batteries.

Nominal pack voltage: 6.6V (3.3V per cell)
Fully-charged pack voltage: 7.2V (3.6V per cell)
Recommended cut-off voltage: 5V (2.5V per cell)
Minimum voltage: 4.0V (2.0V per cell)

Do not charge above 7.2V

Please scroll down to see the full technical specification.

Technical Details for A123 4600mAh 2s2p LiFePO4 Battery Pack - Craft

*Capacity (mAh)*	4600
Dimensions (mm)	70x31x108

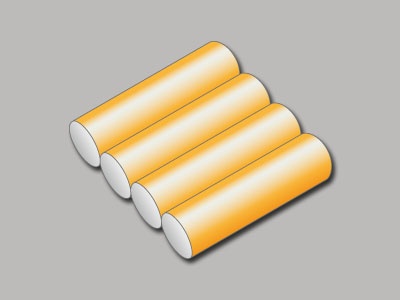

Pack Configuration	2S2P
Balance Plug	Yes
Balance Plug Type	PolyQuest/Hyperion
Continuous Discharge (C)	30.0C
Continuous Current (A)	138.0A
Burst Discharge (C)	60.0C
Burst Current (A)	276.0A
Maximum Charge Rate (C)	4.3C
Maximum Charge Rate (A)	19.7A
Discharge Plug	Yes
Chemistry	LiFePO4
Weight	330.0g (11.6oz.)
