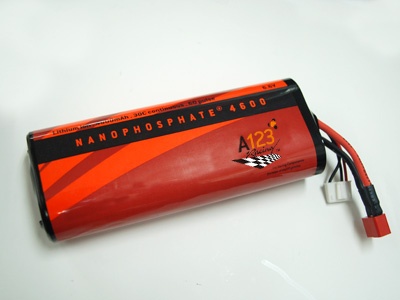

A123 4600mAh 2s2p LiFePO4 Battery Pack

A123 4600mAh 2s2p LiFePO4 Battery Pack - 2x2

400063-001

Click to enlarge image

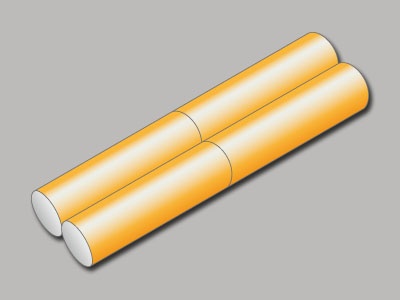

2-cell 4600mAh A123 LiFePO4 battery, in 2s2p configuration (2 × 2s 2300mAh)

The pack arrives already fitted with female Deans Ultra plug and a JST-XH balance connector, the same as found on most batteries.

Nominal pack voltage: 6.6V (3.3V per cell)
Fully-charged pack voltage: 7.2V (3.6V per cell)
Recommended cut-off voltage: 5V (2.5V per cell)
Minimum voltage: 4.0V (2.0V per cell)

Do not charge above 7.2V

Please scroll down to see the full technical specification.

Technical Details for A123 4600mAh 2s2p LiFePO4 Battery Pack - 2x2

*Capacity (mAh)*	4600
Dimensions (mm)	136x31x55
Pack Configuration	2S2P
Balance Plug	Yes
Balance Plug Type	JST-XH
Continuous Discharge (C)	30.0C
Continuous Current (A)	138.0A
Burst Discharge (C)	60.0C
Burst Current (A)	276.0A
Maximum Charge Rate (C)	4.3C
Maximum Charge Rate (A)	19.7A
Discharge Plug	Yes
Chemistry	LiFePO4
Weight	330.0g (11.6oz.)
