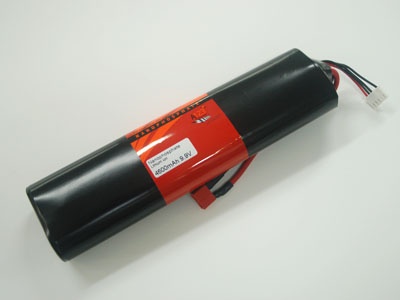

3-cell 9.9V A123 battery pack produced by Enerland using genuine A123 Systems LiFePO4 cells, complete with JST-PQ balance connector and female Deans Ultra plug.
This pack consists of six cells in total. Three cells are wired in series and connected in parallel to three additional series-wired cells to give a 3s2p pack with a total capacity of 4600mAh. The pack should be charged as a 3-cell pack.

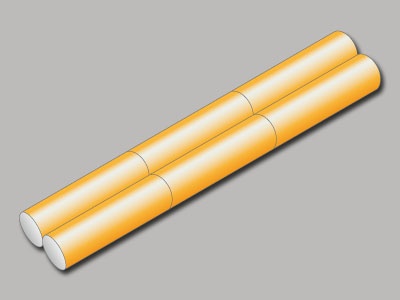

The pack layout is 2×2x2 (Refer to image).
This pack can be charged at a maximum of 20 amps through the Deans Ultra plug but should be balanced regularly for a long service life. A LiFePO4 compatible battery charger must be used, such as the Graupner Ultramat 14 Plus.
Nominal pack voltage: 9.9V
Fully-charged pack voltage: 10.8V
Recommended cut-off voltage: 7.5V (2.5V per cell)
Minimum voltage: 6.0V (2.0V per cell)
Do not charge above 10.8V.
Please scroll down to see the full technical specification.
