AXi 2208/34 EVP Gold Line brushless outrunner motor

AXi 2208/34 EVP

220834EVP

Click to enlarge image

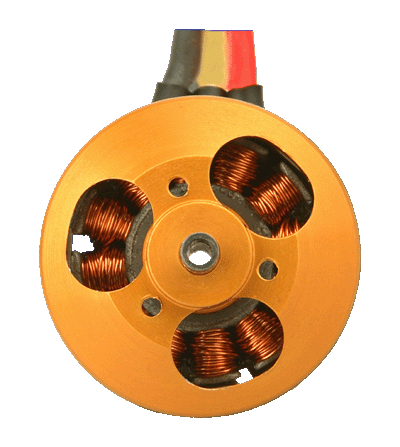

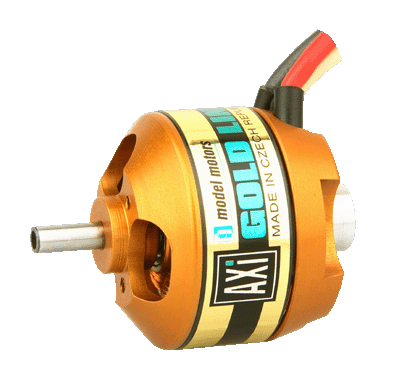

The AXi 2208/34 EVP motor is a 14-pole brushless outrunner motor from Model Motors with 3.17mm hardened-steel hollow shaft suitable for slow and park-fly models up to 500g and 3D VPP models up to 310g with the AXi EVP unit.

The light-weight materials and robust construction from quality components result in a powerful and reliable electric motor, backed-up with a one year warranty.

Other AXi motors in this series: AXi 2208/20, AXi 2208/20 EVP, AXi 2208/26, AXi 2208/26 EVP, AXi 2208/34

Recommended setups for AXi 2208/34 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Trainer	500g (17.6oz)	3s	8.0A/60s	Jeti Eco 8 Brushless Controller	9" x 5"
Aerobatic	400g (14.1oz)	3s	8.0A/60s	Jeti Eco 8 Brushless Controller	9" x 6"
3D	350g (12.3oz)	3s	8.0A/60s	Jeti Eco 8 Brushless Controller	9" x 3.80"
3D EVP	310g (10.9oz)	3s	8.0A/60s	Jeti Eco 8 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2208/34 EVP

*No. of cells (LiPo)*	2-3
RPM/V	1100 Kv
Max. Efficiency	81%
No load current	0.4A
Maximum Load	8.0A
Internal Resistance	0.260Ω

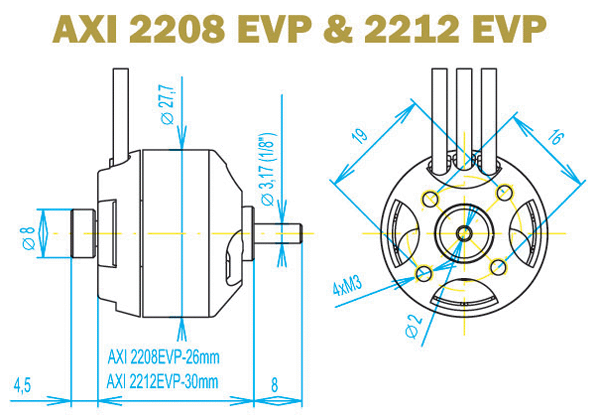

Diameter	27.00mm (1.06")
Length	26.00mm (1.02")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	4-7A (>74%)
Glow Equivalent	N/A
Weight	45.0g (1.6oz.)
