Special version AXi 2814 Gold brushless motor including prop adaptor. With short-shaft and 700mm cables, taking the work out of rigging up your multi-rotor 'copter and especially suitable for the Droidworx heavy-lift frames.

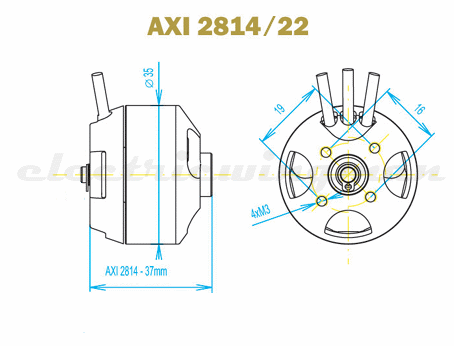

The AXi 2814/22 from Model Motors is a replacement for the MK3538 brushless motors offering improved performance and with the legendary AXi reliability and manufacturing accuracy. The 2814/22 has 14 poles.
The existing radial mount sets are still compatible with AXi 2814/22 motors, but since the entire radial mounting set is not required, we now include the radial shaft and fixing screws, to save you from buying the entire radial mount separately.
On 4s Li-Po batteries with 13"x6.5" propellers, this motor generates approximately 650g of thrust at 4.8A. This equates to a very efficient hover!
Includes radial shaft for propeller mounting (6mm).
Made in Czech Republic.
Other AXi motors in this series:
AXi 2814/10, AXi 2814/12, AXi 2814/16, AXi 2814/20, AXi 2814/22 Droidworx Edition, AXi 2814/6D
Recommended setups for AXi 2814/22 Heavy-Lift
| Type |
Model Weight |
Cells |
Max. Current |
Jeti ESC |
Propeller |
|
| Droidworx AD-4HL |
3000g (105.8oz) |
4s |
25.0A/20s |
-
|
13" x 6.50"
|
|
Do not exceed the recommended propeller sizes.
