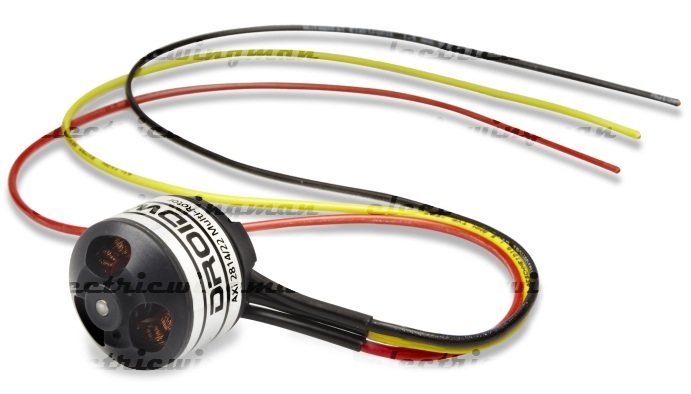

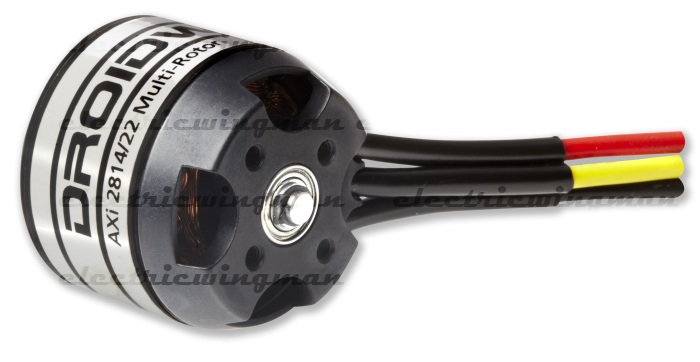

Droidworx edition of the AXi 2814/22 Heavy-lift motor, including prop adaptor from Model Motors, with short-shaft for co-axial mounting and 700mm cables. These motors have the same technical specification as the existing 2814/22 but with slightly longer heatshrink exiting the stator for the three motor wires.
The AXi 2814/22 from Model Motors is a replacement for the MK3538 brushless motors offering improved performance and with the legendary AXi reliability and manufacturing accuracy. The Droidworx 2814/22 has 14 poles.
The existing radial mount sets are still compatible with the Droidworx AXi 2814/22 motors, but since the entire radial mounting set is not required, we now include the radial shaft and fixing screws, to save you from buying the entire radial mount separately.
On 4s Li-Po batteries with 13"x6.5" propellers, this motor generates approximately 650g of thrust at 4.8A. This equates to a very efficient hover!
Includes 6mm radial shaft for propeller mounting.
Made in Czech Republic.
Other AXi motors in this series:
AXi 2814/10, AXi 2814/12, AXi 2814/16, AXi 2814/20, AXi 2814/22 Heavy-Lift, AXi 2814/6D
Recommended setups for AXi 2814/22 Droidworx Edition
| Type |
Model Weight |
Cells |
Max. Current |
Jeti ESC |
Propeller |
|
| Droidworx AD-4HL |
3000g (105.8oz) |
4s |
25.0A/20s |
-
|
13" x 6.50"
|
|
Do not exceed the recommended propeller sizes.
