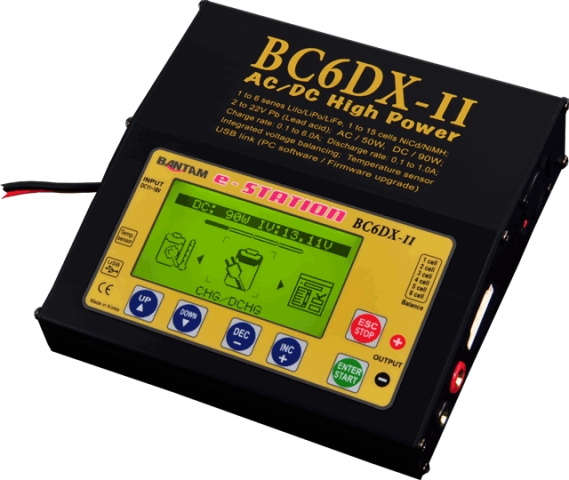

Bantam BC6DX-II Battery Charger

Bantam BC6DX-II

BC6DXII

Click to enlarge image

The Bantam BC6DX-II is a dual-power battery charger which can be operated from an 11-18V DC power source or your mains power supply. The maximum output power and thus the rate the BC6DX-II can charge your batteries is dependent on how the unit is powered.

If operated from your mains power supply, the ouput power is 50W. If operated from an 11-18V DC power supply, the output power is increased to 90W.

The Bantam BC6DX2 is suitable for 1-6 LiPo cells, 1-15 NiMH/NiCd cells or 2-22V Pb batteries.

A balance adaptor board for JST-PQ (PolyQuest/Hyperion) type balance connectors is included, as well as connecting lead to connect the board to the charger.

Includes UK mains plug.

Made in Korea.

Technical Details for Bantam BC6DX-II

Input Voltage Range (DC)	11-18
Mains Operable	Yes
Dimensions (mm)	140x140x45
Max. Charge Current	6.0A
Max. Discharge Current	1.0A
Max. Charge Power (W)	90
Max. Discharge Power (W)	5
Balancing Current	0.2A
Lithium cell count (LiPo, LiIo, LiFe)	1-6
NiCd/NiMH cell count	1-15
Pb cell count	2-22V
Weight	670.0g (23.6oz.)
