Bantam BC6HP E-Station Battery Charger

BC6HP

Click to enlarge image

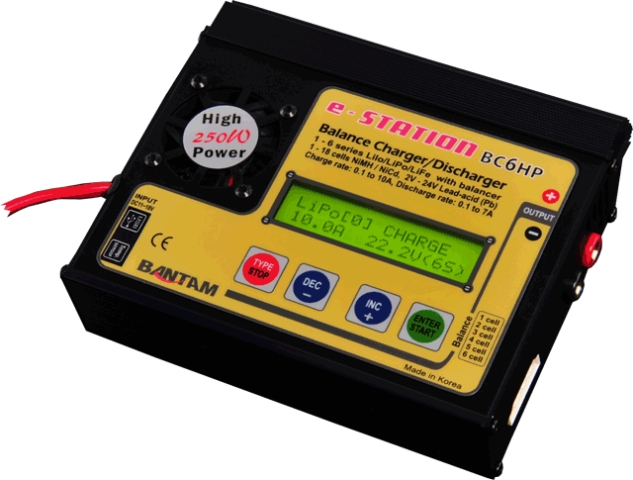

The Bantam BC6-HP is a 250W charger, balancer and cycler for your 1-6s Li-Poly batteries. The BC6HP is also compatible with your NiMH/NiCd and Pb batteries and designed to be powered from a 11-18V DC power source such as a leisure or car battery or a suitable PSU.

Bantam chargers are designed with safety in mind and thus contain intelligent features such as delta-peak sensitivity, auto-charge current limit, capacity, temperature and processing time limits based on maximum values that you specify.

The Bantam BC6HP battery charger includes a balance adaptor board and connecting lead for Hyperion type balance connectors.

Please see the PDF manual below for full operating instructions.

Technical Details for Bantam BC6HP E-Station Battery Charger

Input Voltage Range (DC)	11-18
Mains Operable	No
Dimensions (mm)	140x120x40
Max. Charge Current	10.0A
Max. Discharge Current	7.0A
Max. Charge Power (W)	250
Max. Discharge Power (W)	25
Balancing Current	0.2A
Lithium cell count (LiPo, LiIo, LiFe)	1-6
NiCd/NiMH cell count	1-18
Pb cell count	2-24
Weight	580.0g (20.5oz.)
