Castle Creations Phoenix Ice 100

010-0061-00

Click to enlarge image

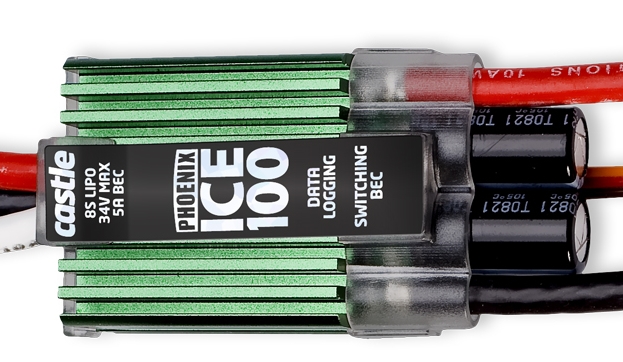

The Castle Creations Phoenix Ice 100 is a 100A brushless controller for model aeroplanes and helicopters, with a powerful switching BEC, data logging and support for Li-Po batteries up to 8s.

With its fully customisable suite of options programmable using the Castle Link and corresponding Castlelink software, the Phoenix Ice 100 is a powerful controller for demanding radio controlled plane and heli pilots and will help fine tune your setup through its data logging and recording features.

Castle part #010-0061-00.

Find bushless ESCs similar to Castle Creations Phoenix Ice 100
ESC	Max. Amps	Cells	BEC Type	Price
Castle Creations Phoenix Ice 100 (This ESC)	100A	2-8s	Switching BEC	$131.97
Jeti Spin Pro 99 Opto	99A	4-12s	No BEC (Opto)	$217.12
Jeti Advance 90 Pro Opto	90A	4-10s	No BEC (Opto)	$193.06

Technical Details for Castle Creations Phoenix Ice 100

*No. of cells (LiPo)*	2-8
*No. of cells (LiFe)*	-
*No. of cells (NiXX)*	4-22
Max. continuous current	100.0A
*Dimensions (x,y,z in mm)*	70x50.6x23.2
Continuous BEC Current	5.0A
Max BEC Current	5.0A
*Jeti Box Compatible (JBC)*	No
BEC Type	Switching BEC
Weight	123.0g (4.3oz.)
