Castle Creations Phoenix Ice2 HV 160

010-0076-00

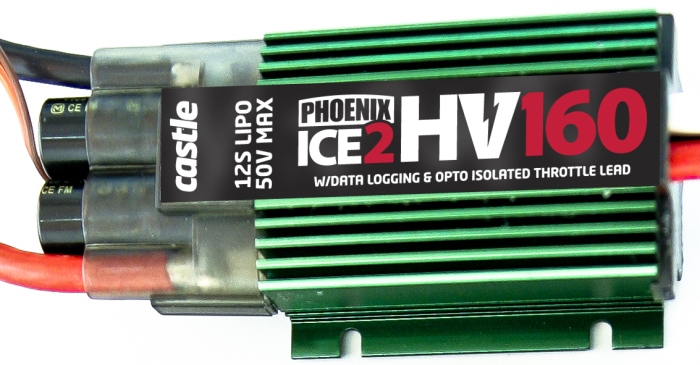

Click to enlarge image

The Castle Creations Phoenix Ice HV 160 is a high-voltage speed controller for brushless motors, supporting up to 160A continuous current drain and featuring built-in data logging and customisation through the Castle Link and associated Castlelink software.

With support for up to 12s Li-Po cells and logging of amps, controller temperature, motor RPM, voltage (and ripple) you can be sure the Castle Phoenix 160 HV will satisfy your needs as a demanding pilot.

Castle Creations part #010-0076-00.

Find bushless ESCs similar to Castle Creations Phoenix Ice2 HV 160
ESC	Max. Amps	Cells	BEC Type	Price	Stock
Castle Creations Phoenix Ice2 HV 160 (This ESC)	160A	2-12s	No BEC (Opto)	$323.27
Jeti Spin Pro 200 Opto	170A	6-14s	No BEC (Opto)	$380.62

Technical Details for Castle Creations Phoenix Ice2 HV 160

*No. of cells (LiPo)*	2-12
*No. of cells (LiFe)*	-
*No. of cells (NiXX)*	4-36
Max. continuous current	160.0A
*Dimensions (x,y,z in mm)*	100x52x30.6
Continuous BEC Current	0.0A
Max BEC Current	0.0A
*Jeti Box Compatible (JBC)*	No
BEC Type	No BEC (Opto)
Weight	210.0g (7.4oz.)
