Castle Creations Phoenix Ice 75

010-0067-00

Click to enlarge image

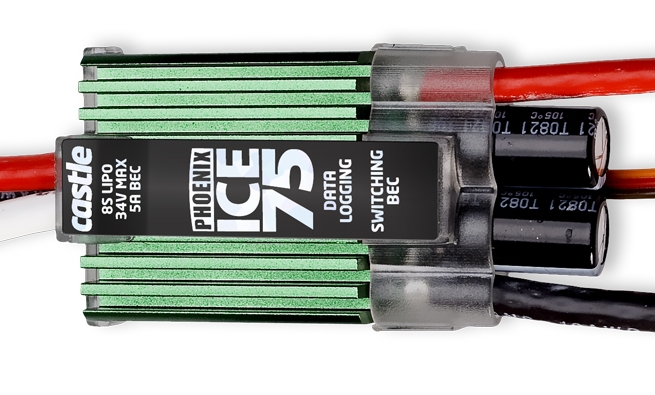

The Castle Creations Phoenix Ice 75 is a brushless controller for model aeroplanes and helicopters, supporting up to 8s Li-Po maximum input voltages. The Phoenix range of brushless controls are fully programmable using the Castle Link and Castlelink software and provide you with the ultimate control and reliability in your power system.

The Castle Phoenix Ice 75 features a powerful 5A switching BEC, so with this controller there is no need for the complexity or additional weight of a voltage regulator for your receiver and servos.

Find bushless ESCs similar to Castle Creations Phoenix Ice 75
ESC	Max. Amps	Cells	BEC Type	Price
Castle Creations Phoenix Ice 75 (This ESC)	75A	2-8s	Switching BEC	$118.71
Jeti Spin Pro 66	66A	2-6s	Switching BEC	$105.31
Jeti Spin Pro 75 Opto	75A	4-10s	No BEC (Opto)	$123.05
Jeti Spin Pro 77 Opto	77A	4-12s	No BEC (Opto)	$157.02
Jeti Advance 70 Pro	70A	2-3s	Linear BEC	$81.48
Jeti Advance 70 Pro SB	70A	2-6s	Switching BEC	$88.32
Jeti Advance 70 Pro Opto	70A	2-6s	No BEC (Opto)	$81.48
Jeti Advance 77 Pro Opto	77A	3-10s	No BEC (Opto)	$131.90
Jeti Spin 77 Opto - Special 15s Version	77A	4-15s	No BEC (Opto)	$168.61
Castle Creations Phoenix Ice2 HV 80	80A	3-12s	No BEC (Opto)	$191.29

Technical Details for Castle Creations Phoenix Ice 75

*No. of cells (LiPo)*	2-8
*No. of cells (LiFe)*	-
*No. of cells (NiXX)*	4-22
Max. continuous current	75.0A
*Dimensions (x,y,z in mm)*	70x50.6x23.2
Continuous BEC Current	5.0A
Max BEC Current	5.0A
*Jeti Box Compatible (JBC)*	No
BEC Type	Switching BEC
Weight	108.0g (3.8oz.)
