Castle Creations Phoenix Ice2 HV 80

010-0075-00

Click to enlarge image

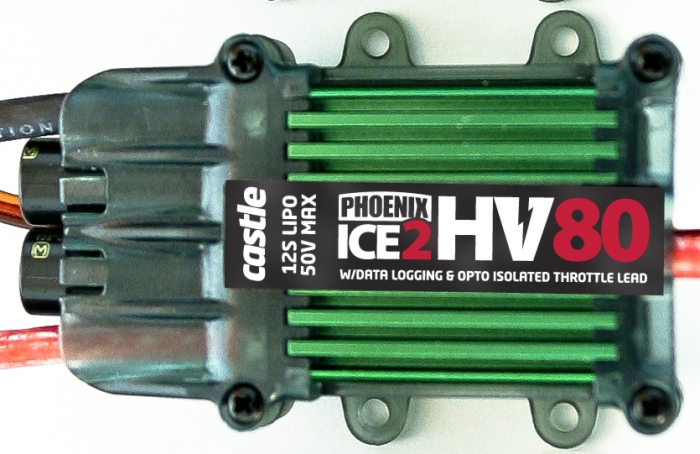

Castle Creations Phoenix Ice2 High-Voltage 80A brushless controller for up to 12s Li-Po (50V maximum input) with built-in data logging.

The Phoenix Ice 80 HV is an Opto type controller and therefore cannot supply power to your receiver and servos through the throttle channel connector.

Castle Creations, Inc. warrants this product to be free from manufacturing defects for a period of one year from date of purchase.

Castle Creations part 010-0075-00.

Find bushless ESCs similar to Castle Creations Phoenix Ice2 HV 80
ESC	Max. Amps	Cells	BEC Type	Price
Castle Creations Phoenix Ice2 HV 80 (This ESC)	80A	3-12s	No BEC (Opto)	$191.29
Jeti Spin Pro 75 Opto	75A	4-10s	No BEC (Opto)	$123.05
Jeti Spin Pro 77 Opto	77A	4-12s	No BEC (Opto)	$157.02
Jeti Advance 70 Pro	70A	2-3s	Linear BEC	$81.48
Jeti Advance 70 Pro SB	70A	2-6s	Switching BEC	$88.32
Jeti Advance 70 Pro Opto	70A	2-6s	No BEC (Opto)	$81.48
Jeti Advance 77 Pro Opto	77A	3-10s	No BEC (Opto)	$131.90
Jeti Advance 90 Pro Opto	90A	4-10s	No BEC (Opto)	$193.06
Jeti Spin 77 Opto - Special 15s Version	77A	4-15s	No BEC (Opto)	$168.61

Technical Details for Castle Creations Phoenix Ice2 HV 80

*No. of cells (LiPo)*	3-12
*No. of cells (LiFe)*	-
*No. of cells (NiXX)*	6-36
Max. continuous current	80.0A
*Dimensions (x,y,z in mm)*	74.5x50.6x23.2
Continuous BEC Current	0.0A
Max BEC Current	0.0A
*Jeti Box Compatible (JBC)*	No
BEC Type	No BEC (Opto)
Weight	120.0g (4.2oz.)
