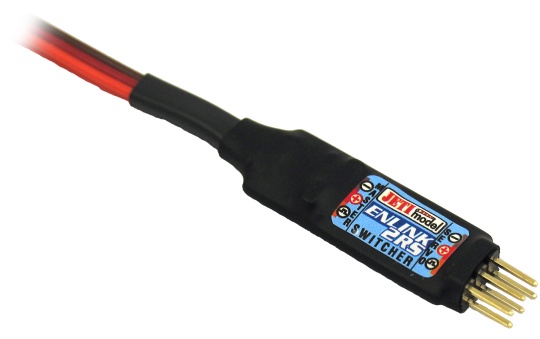

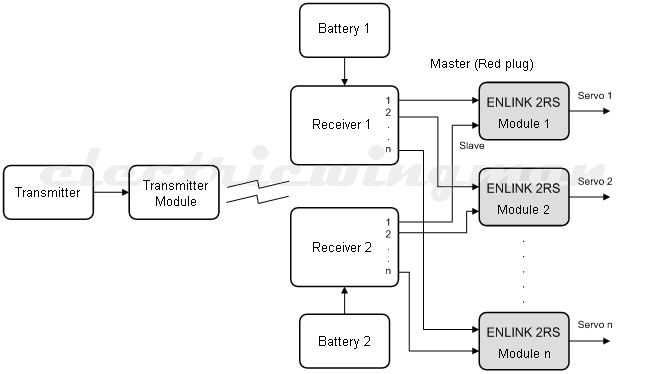

The Jeti EnLink 2RS is an intelligent switch for redundant control of 1-2 servos. Using parallel Duplex receivers (Or one Duplex receiver and a 35mhz receiver), the Enlink 2RS connects to both receivers and provides a redundant signal and power-supply for the attached servo. Two servos can be connected, where both servos serve exactly the same function.
The Enlink 2RS units are sold in pairs. The quoted price is thus for two units.
This intelligent switch will automatically choose the best signal from the two receivers and will power your servos from the highest input voltage. The Master and Slave receivers do not need to be operating at the same voltages, but the EnLink 2RS will always supply any servos with the highest voltage available.
All wires are heavy-duty, supporting a maximum burst current of 12A and a continuous current of 3A.
Please note that the EnLink 2RS does not regulate the input voltage and will not serve as a standalone voltage regulator.
The master receiver must be a digital receiver in order to provide a true 'off' signal to the Enlink unit in case of signal failure.
