Graupner Ultramat 18 Battery Charger & Balancer

Graupner Ultramat 18

6470.GB

Click to enlarge image

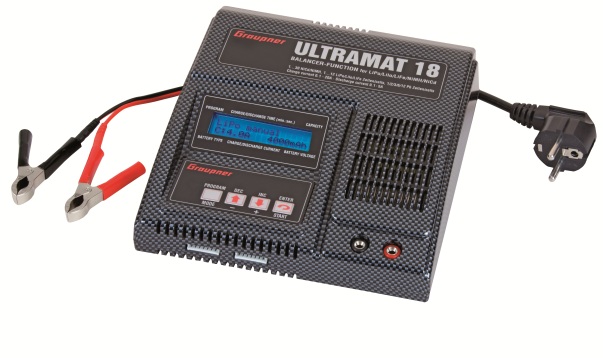

The Ultramat 18 from Graupner is a mains or 12V DC powered battery charger and balancer for 1-12 cell Li-Poly packs or 1-30 cell NiMH packs.

The maximum output power is 300W when powered through a 12V DC power-supply or 90W when powered through the mains using the included UK mains plug. The maximum charge current is 20A. Maximum discharge current is 5A.

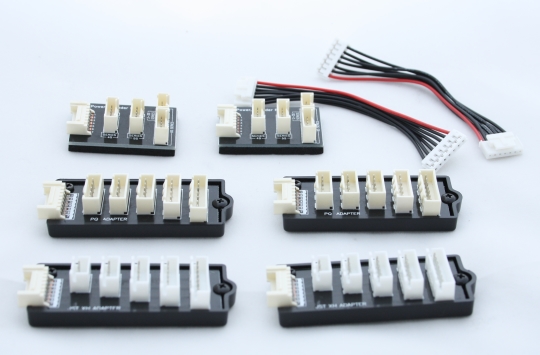

Includes two adaptor boards for each of the following balance plugs: JST-XH, JST-PQ (PolyQuest/Hyperion) and ThunderPower.

A European 2-pin plug and a UK 3-pin plug are included, making this an excellent package for worldwide use. For maximum charge power, use a 12V DC power-supply.

Technical Details for Graupner Ultramat 18

Input Voltage Range (DC)	11-15V
Mains Operable	Yes
Dimensions (mm)	188x199x66
Max. Charge Current	20.0A
Max. Discharge Current	5.0A
Max. Charge Power (W)	300
Max. Discharge Power (W)	40
Balancing Current	0.3A
Lithium cell count (LiPo, LiIo, LiFe)	1-12
NiCd/NiMH cell count	1-30
Pb cell count	1,2,3,6,12
Weight	1,030.0g (36.3oz.)
