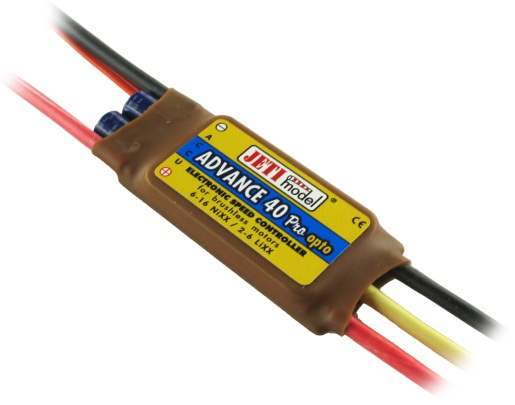

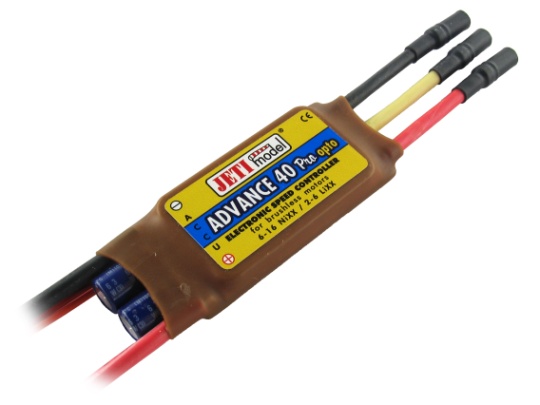

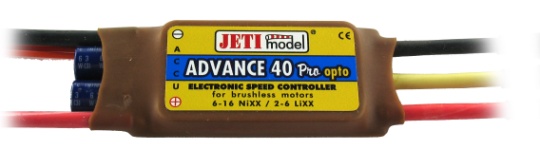

The Jeti Advance 40 Pro Opto is a 40 amp electronic speed controller for brushless motors supporting up to 6-cell Li-Poly or 7-cell A123 packs.
Note that this ESC is Opto and therefore a separate power-supply is required for your receiver and servos, such as the Jeti Max BEC or Max BEC 2.
Female gold connectors are already fitted to the motor side of the controller and the mating male halves are included in the packaging with heat-shrink to fit to your three motor wires.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as follows: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter or for maximum simplicity use the Advance Pro Programming card, available separately, which is also compatible with the old Advance Plus range of controllers.
Just solder your choice of connector to the pre-tinned battery wires.
Compatible with LiPo, A123 and NiCd/NiMH batteries.
With two-year warranty.
