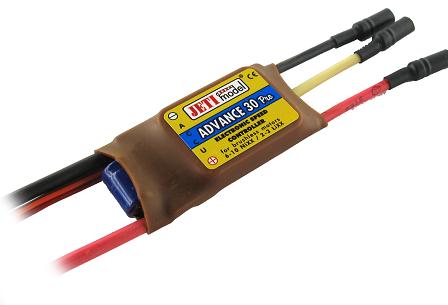

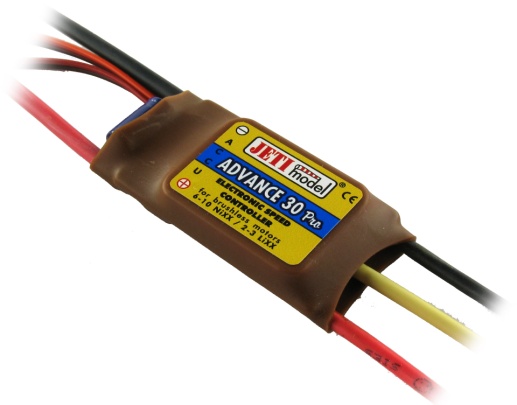

The Jeti Advance 30 Pro speed controller for brushless motors is a 30 amp controller with arming switch and built-in 5.0V linear BEC supporting up to 2.0 amps
Use this controller with 2-3 LiPo cells or 2-4 A123 LiFePO4 cells. The Advance 30 Pro supports up to 4 servos on 3s setups and thus makes a good controller for sporty park-flying models using micro-servos.
On the motor side, the controller arrives fitted with female 3.5mm gold connectors and the box includes 3 matching male connectors for your brushless motor.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as follows: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter or for maximum simplicity use the Advance Pro Programming card, available separately, which is also compatible with the old Advance Plus range of controllers.
Just solder your choice of connector to the pre-tinned battery wires.
With two-year warranty.
