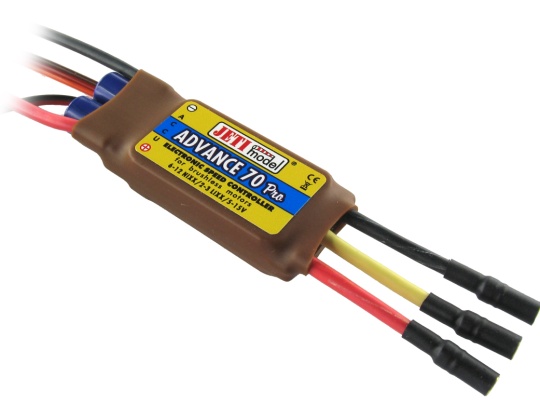

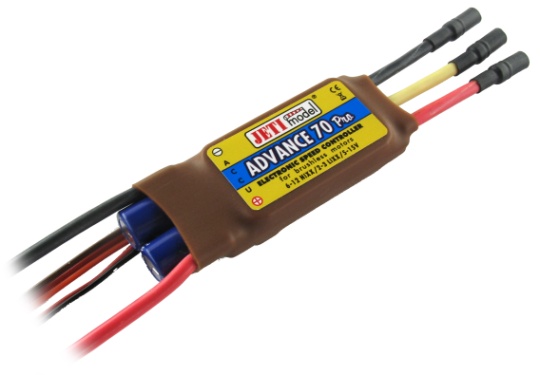

The Jeti Advance 70 Pro brushless controller is a 70 amp speed controller for brushless motors, with a built-in 5.0V BEC, which can support up to 3.0 amps, e.g. Four HS-81 Servos when using a 3-cell Li-Poly battery.
In large powered gliders we recommend the Jeti Spin 66 or the Jeti Advance 70 Pro SB, which both feature a switch-mode BEC to power the higher numbers of servos usually present in this type of model.
This controller features an on/off switch. Always disconnect batteries when not in use.
Female gold connectors are already fitted to the motor side of the controller and the mating male halves are included in the packaging with heat-shrink to fit to your three motor wires.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as follows: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter or for maximum simplicity use the Advance Pro Programming card, available separately, which is also compatible with the old Advance Plus range of controllers.
Just solder your choice of connector to the pre-tinned battery wires.
With two-year warranty.
