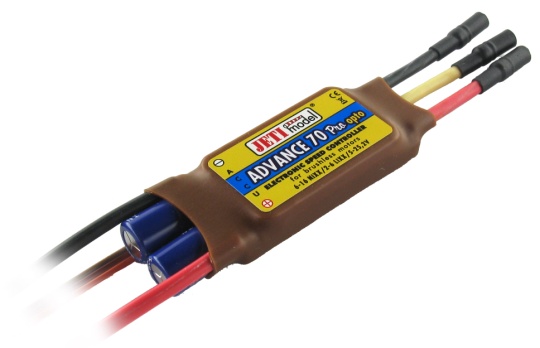

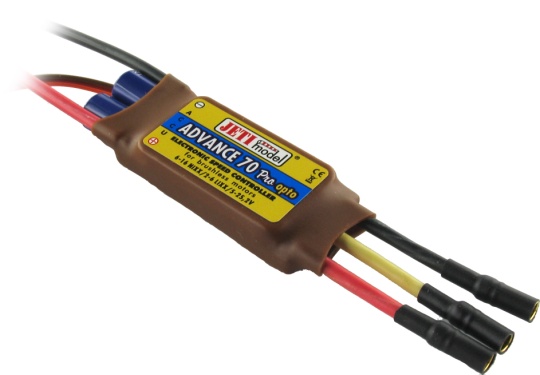

The Jeti Advance 70 Pro Opto brushless controller is a 70 amp speed controller for brushless motors, 2-6 LiPo cells or 2-7 A123/LiFePO4 cells.
This unit is opto type and therefore a separate power source is required for your receiver. Jeti Advance Pro Opto controllers are not fitted with an arming switch. We recommend to always disconnect the controller from its power source after landing.
If you require a voltage regulator, please consider the Jeti Max range of BEC's.
Female gold connectors are already fitted to the motor side of the controller and the mating male halves are included in the packaging with heat-shrink to fit to your three motor wires.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as follows: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter or for maximum simplicity use the Advance Pro Programming card, available separately, which is also compatible with the old range of Advance Plus controllers.
Just solder your choice of connector to the pre-tinned battery wires.
With two-year warranty.
Find bushless ESCs similar to Jeti Advance 70 Pro Opto
Technical Details for Jeti Advance 70 Pro Opto
No. of cells (LiPo) | 2-6 |
No. of cells (LiFe) | 2-7 |
No. of cells (NiXX) | 6-16 |
Max. continuous current | 70.0A |
Dimensions (x,y,z in mm) | 53x26x11 |
Continuous BEC Current | 0.0A |
Max BEC Current | 0.0A |
Jeti Box Compatible (JBC) | No |
BEC Type | No BEC (Opto) |
Weight | 56.0g (2.0oz.) |
