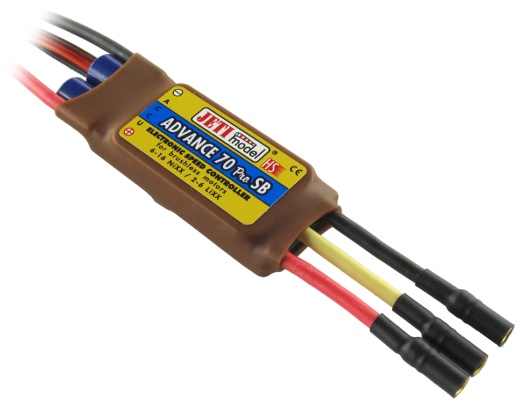

The Jeti Advance 70 Pro SB brushless controller is a 70 amp ESC with a switch-mode 5.5V BEC, supporting up to 6 analog servos and fitted with an arming switch. Forget using high-capacity speed controllers with lower power linear BECs in your larger models and use the Jeti Advance Pro 70 SB for smooth throttle response and a reliable source of power for your receiver and servos. The steady 5.5V volt supply from this controller provides smooth and reliable power for your servos.
These units are programmable with the Jeti Advance Pro programming card, which is also compatible with the old Advance Plus range of speed controllers.
Female gold connectors are already fitted to the motor side of the controller and the mating male halves are included in the packaging with heat-shrink to fit to your three motor wires. Just add your choice of battery to ESC connector.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as below and highlighted in bold: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter by following the instructions included. For maximum simplicity use the Advance Pro Programming card, available separately.
Just solder your choice of connector to the pre-tinned battery wires and the controller is ready to use.
With two-year warranty provided by Jeti.
Made in Czech Republic.
