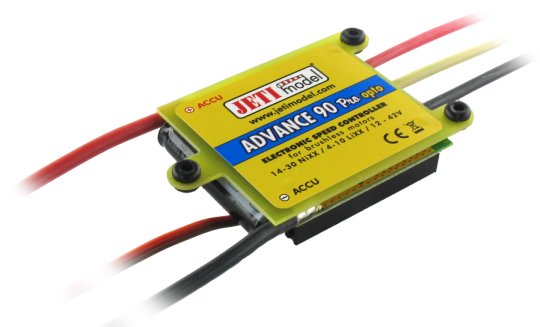

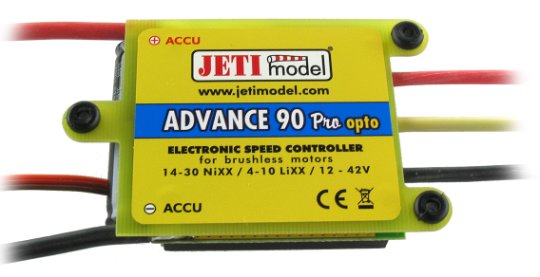

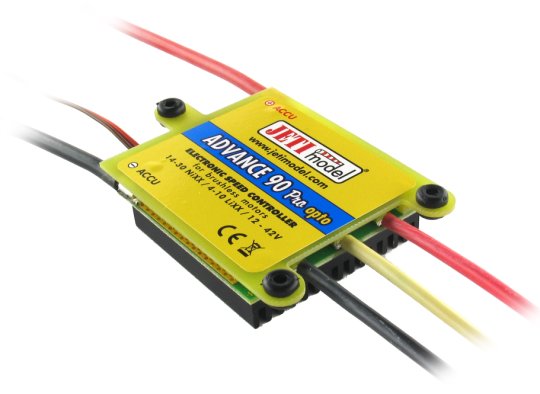

The Jeti Advance 90 Pro Opto brushless controller is a 90 amp speed controller for brushless motors, supporting 4-10 LiPo cells or 4-12 A123/LiFePO4 cells.
The Jeti Advance Pro 90 is an opto type controller and therefore a separate power source is required for your receiver and servos. Jeti Advance Pro Opto controllers are not fitted with an arming switch. We recommend to always disconnect the controller from its power source after landing or make up a switch harness from suitable wire and a connector to enable the circuit to be disconnected without removing wings/canopy e.t.c
If you require a voltage regulator, please consider the Jeti Max range of BEC's.
Advance Pro controllers are ready-to-use straight from the box with no programming required. The default settings are as follows: -
- Brake: off | medium | hard
- Timing: auto | high | low
- Acceleration: high | medium | low
- Cut-off voltage (Li-Po): 2.8V | 3.0V | 3.2V (per cell)
- Cut-off voltage (Li-Fe): 2.2V | 2.5V | 2.8V (per cell)
- Cut-off type: hard | slow-down
- Motor rotation: right
- Battery type: Nixx | Lixx | LiFe
All settings can be adjusted via your transmitter or for maximum simplicity use the Advance Pro Programming card, available separately, which is also compatible with the old range of Advance Plus controllers.
Just solder your choice of connector to the pre-tinned battery and motor wires.
With two-year warranty provided by Jeti.
Made in Czech Republic.
