Jeti Duplex 2.4EX R10 Receiver

JD-R10

Click to enlarge image

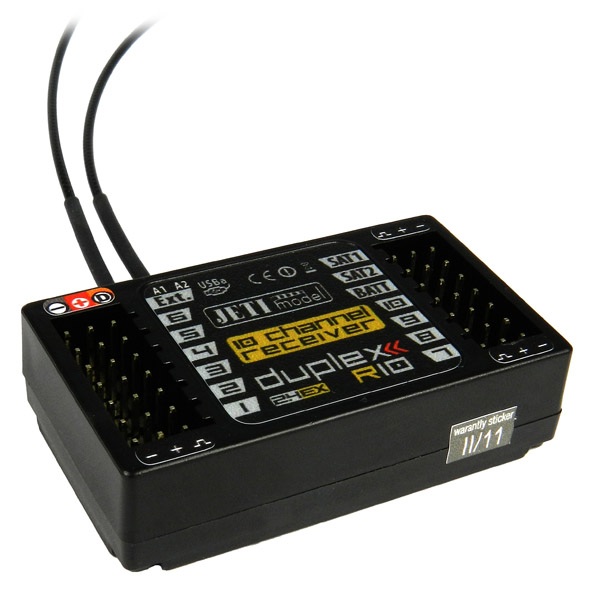

The Duplex R10 receiver is a 2.4GHz 10-channel receiver from Jeti, with support for two satellite receivers and all Duplex sensors.

The R10 has two 200mm antennae and will accept input voltages from 3.2 to 8.4V. This voltage is not regulated and therefore a suitable regulator should be used such as a Jeti Max BEC, to ensure a stable power-supply for your servos.

As with all Duplex receivers, the Duplex R10 offers realtime feedback and alerts of the receiver system voltage and is compatible with all Duplex sensors and programming procedures, such as pairing and clone-mode operation.

Technical Details for Jeti Duplex 2.4EX R10 Receiver

Dimensions (mm)	50 x 30 x 12.5
Antennae Count	2
Antennae Length	200.00mm (7.87")
Channel Outputs	10
Temperature Range min. (°C)	-10
*Jeti Box Compatible (JBC)*	No
Temperature Range max. (°C)	85
Supply Voltage min.	3.2V
Supply Voltage max.	8.5V
Average Current (mA)	40
Transmission of Telemetric Data	Yes
Satellite receiver support	Yes
Power output (dBm)	20
Receiver Sensitivity (dBm)	-106
Weight	17.0g (0.6oz.)
