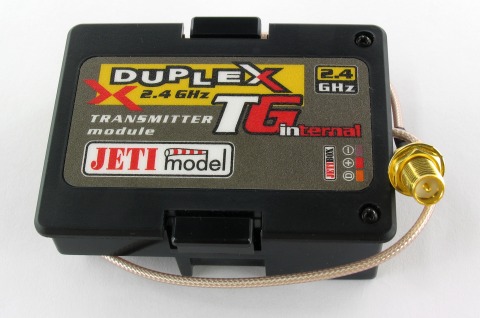

The Jeti Duplex TGi internal transmitter module is an exchangeable plug-in module designed for the following Graupner/JR transmitters as a drop-in replacement: FM-6014, MC-17, MC-18, MC-20, MC-24.
The TGi module includes the antenna which should be connected to the coaxial cable exiting the module housing. The lead to connect the Jeti Box is included with your [optional] Jeti Box and must be routed through an appropriate hole in the Tx case.
Jeti's 2.4GHz solution is a channel hopping system with bi-directional communication between the receiver and transmitter, which allows various parameters read by separate sensors to be sent from your model to the transmitter and monitored on the Jeti Box display. This allows real-time information to be gathered from your model during flight to monitor such things as battery state and balance, actual air speed, cylinder head temperature, propeller RPM and even the position of your model and its rate of climb or current altitude.
A full range of receivers is available for air, land and water models and every receiver offers fully programmable fail-safe for each individual channel. It is also possible to pair two receivers together to increase the number of available channels, for example joining two 6-channel receivers to create 12 channels within your model.
All Jeti Duplex equipment carries a two-year manufacturers warranty.
