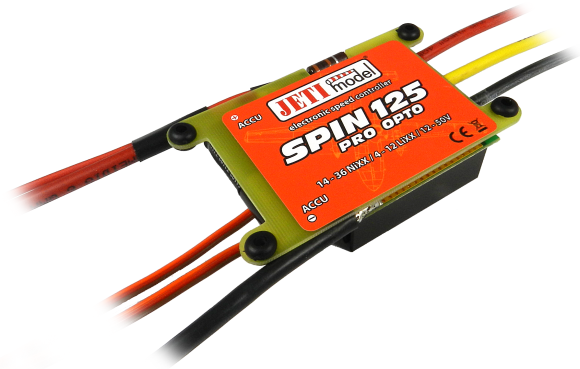

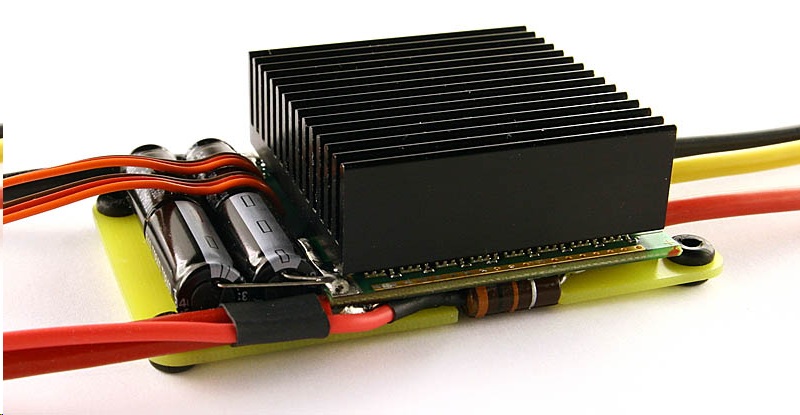

Jeti Spin Pro 125 opto speed controller for brushless motors, complete with three pairs of 4mm gold connectors and heatshrink. Suitable for 4-12 LiPo cells or 14-36 NiXX cells (12-50V input) This unit is Jeti Box Compatible.
Jeti Spin Pro controllers are now Duplex compatible, and will feed the current motor power (as a percentage), RPM, temperature and voltage through the data port of your Duplex receiver.
The Spin 125 features an anti-spark wire. When connecting the controller to your flight battery pack, first connect the negative/black wires, followed by the small red anti-spark wire and finally the positive/red wires.
Please note that opto speed controllers do not provide power to your receiver and servos, therefore a separate, stablised power-supply should be used, such as a voltage regulator like the Jeti Max BEC or Max BEC 2.
Please ensure the speed controller settings are correct for your motor before running. For all AXi motors, use the preset Acro outrunner.
24-month warranty provided by Jeti. Model Motors approved.
Made in Czech Republic.
