This controller has now been replaced by the Advance 90 Pro Opto.

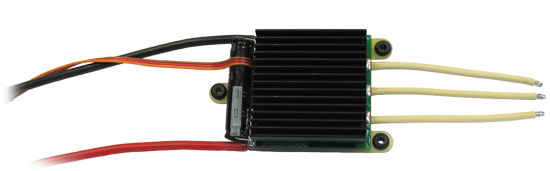

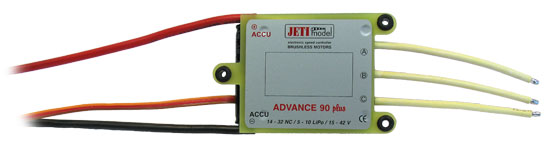

Jeti ADVANCE 90 plus speed controllers for brushless motors are designed for best results with any type of brushless motor and battery.
Jeti ADVANCE 90 plus: -
– Suitable for all types of battery NiCd, NiMh, Li-polymer, Li-Ion
– High frequency brake with non linear course and limited braking action
– Auto calibrating type with variable end point
– Cut off type – slow down system with safety rest of accu capacity
– 8 kHz switching rate
– Possibility to set 2 modes: -
– MODE 1: Normal motors (2, 4, 6 pole) maximum effeiency timing about 0 degrees
– MODE 2: Outrunning high pole motors (10, 14 pole) higher optimum timing for this type of motors and special software for best rotation
– Possible to connect with Jeti ADVANCE plus programming card
