The Jeti Max BEC 2 is a linear voltage regulator offering two power inputs for two 2s lithium polymer batteries or 6s NiXX, with a maximum output of 20 amps, a sustained output of 12 amps and a weight of 85 grams. The linear voltage regulation provided by this unit does not contribute to radio interference. This Jeti voltage regulator provides ample power for large scale gliders.
The output voltage is selectable using a single jumper to select between voltages of: 5.0V, 5.4V, 5.7V, 6.0V

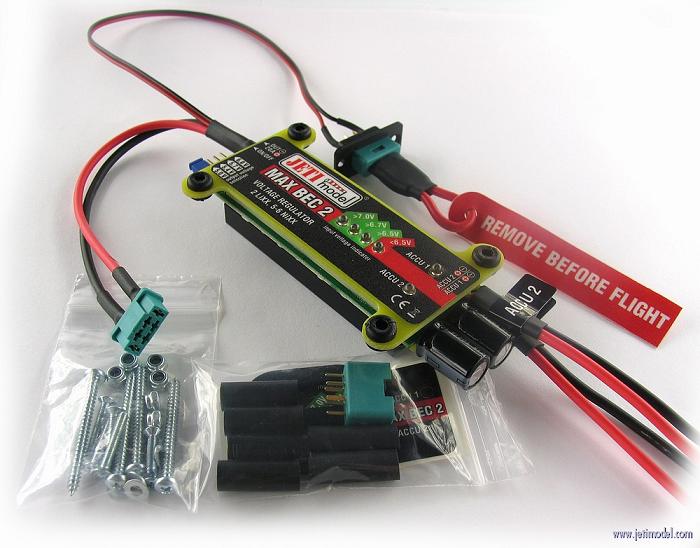

Included with the BEC are: -
- All required mounting screws/bolts for the unit and switch harness
- Heatshrink
- Female half of BEC output plug (MPX type)
Four bright LEDs indicate the input voltage.
The output plug can be changed according to user preference. The supplied plug is Multiplex type and is compatible with the following Duplex receivers: Jeti Duplex R6 EPC, R8 EPC, R11, R12, R14 and R18.
