Jeti SPIN 48 opto brushless speed controller

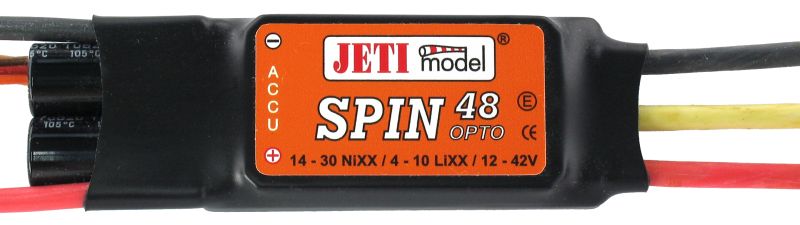

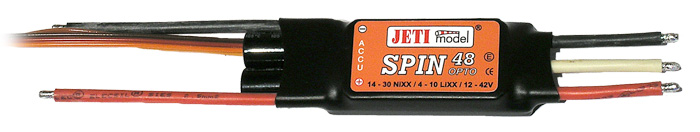

Jeti Spin 48 Opto

S48

Click to enlarge image

The Jeti Spin 48 Opto electronic speed controller exetends the Spin range of controllers with another high voltage controller.

This controller is Opto type and has galvanically separated input and output, it is therefore necessary to use an independent power supply for your receiver and servos (usually 4x NiCd or NiMH cells or 2 lithium polymer cells).

The system of setting and functions are the same as with Jeti Spin 11-66, therefore this unit can be programmed via the Jeti Box.

Please ensure the speed controller settings are correct for your motor before running. For all AXi motors, use the preset Acro outrunner.

Find bushless ESCs similar to Jeti Spin 48 Opto
ESC	Max. Amps	Cells	BEC Type	Price
Jeti Spin 48 Opto (This ESC)	48A	4-10s	No BEC (Opto)	$135.47
Jeti Spin Pro 44	44A	2-6s	Switching BEC	$84.63
Jeti Spin Pro 55	55A	2-8s	Switching BEC	$94.15
Jeti Spin 44	44A	2-6s	Switching BEC	$65.45

Technical Details for Jeti Spin 48 Opto

*No. of cells (LiPo)*	4-10
*No. of cells (LiFe)*
*No. of cells (NiXX)*	14-30
Max. continuous current	48.0A
*Dimensions (x,y,z in mm)*	52x25x12
Continuous BEC Current	0.0A
Max BEC Current	0.0A
*Jeti Box Compatible (JBC)*	Yes
BEC Type	No BEC (Opto)
Weight	45.0g (1.6oz.)
