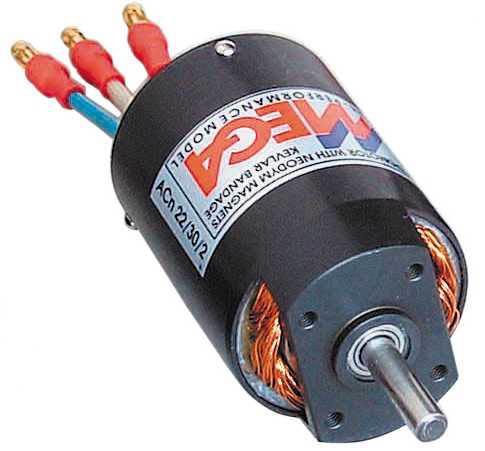

Mega 22/30/03E Brushless Motor

223003E

Click to enlarge image

The Mega 22/30/03E is a powerful brushless 'inrunner' type electric motor for radio controlled motors featuring a wide performance envelope, which lends itself well to a number of power setups.

The Mega 22/30/03E has a maximum current capability of 70 amps and is ideal for efficient setups in aerobatic models up to around 1,500g on 11×7 propellers with 3s Li-Poly batteries.

The most popular use of the Mega 22/30/03E is in sailplanes and gliders up to around 2,400g in weight using 13×6.5 and 13×8 propellers on 3-cell lithium polymer batteries.

Made in Czech Republic.

Technical Details for Mega 22/30/03E Brushless Motor

*No. of cells (LiPo)*	2-3
RPM/V	935 Kv
Max. Efficiency	0%
No load current	0.5A
Maximum Load	70.0A
Internal Resistance	0.160Ω

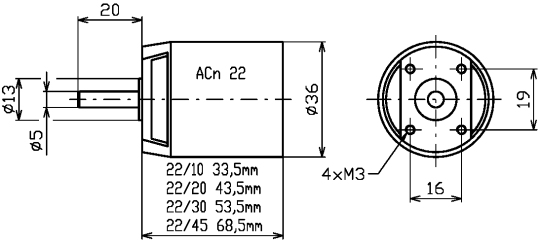

Diameter	36.00mm (1.42")
Length	54.00mm (2.13")
Shaft Diameter	5.00mm (0.20")
Max. Efficiency Current	-
Glow Equivalent	N/A
Weight	220.0g (7.8oz.)
