AXi 2826/12 Short-Shaft

282612-SS-LC

Click to enlarge image

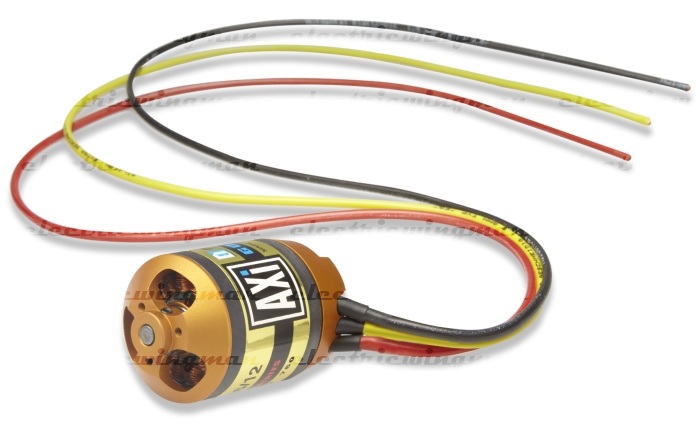

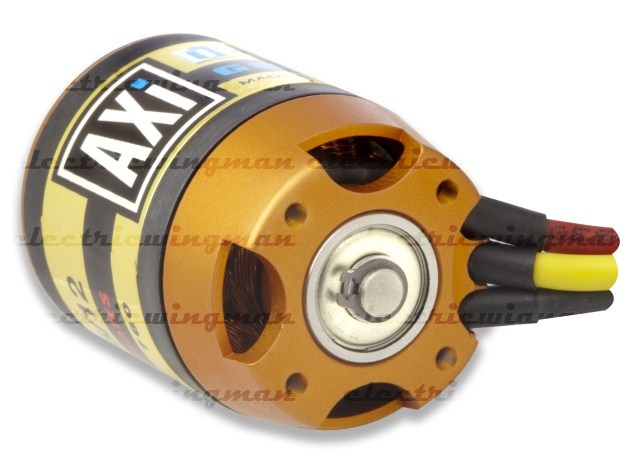

New AXi 2826/12 Gold Line brushless motor with shortened shaft and 700mm cables. Includes prop adaptor. For simple mounting on multi-rotor platforms such as the Droidworx SkyJib 6 and SkyJib 8.

A radial propeller driver with 6mm shaft is included with the motor.

Made in Czech Republic.

Other AXi motors in this series: AXi 2826/08PG, AXi 2826/10, AXi 2826/12, AXi 2826/6, AXi 2826/8

Technical Details for AXi 2826/12 Short-Shaft

*No. of cells (LiPo)*	2-4
RPM/V	760 Kv
Max. Efficiency	84%
No load current	1.3A
Maximum Load	37.0A
Internal Resistance	0.062Ω
Diameter	35.00mm (1.38")
Length	54.00mm (2.13")
Shaft Diameter	5.00mm (0.20")
Max. Efficiency Current	15-25A (>78%)
Glow Equivalent	.40-.46
Weight	181.0g (6.4oz.)
