AXi 2203/46 Gold Line brushless outrunner motor

AXi 2203/46

220346

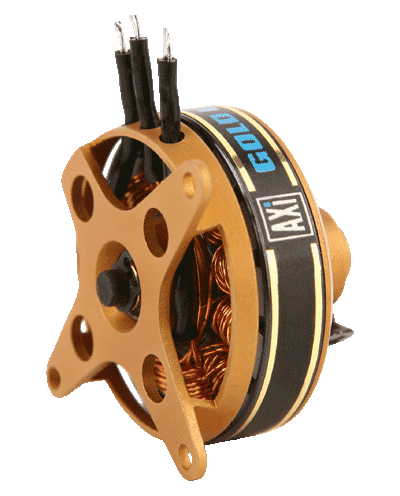

Click to enlarge image

The AXi 2203/46 Gold Line brushless outrunner motor with carbon shaft, integrated prop saver and three mounting lugs weighs only 18g. This motor was designed especially for very light-weight indoor aerobatic models (F3P class)

The three mounting lugs allow easy mounting to the fuselage of the model and fast centering. The 3mm carbon shaft is supported by two ball-bearings.

This power unit is suitable for light 3D models and aerobatic indoor models weighing up to 220g (7.7oz) such as freestyle indoor models. A slow-fly type propeller of 8"x4.3" is recommended such as the GWS 8×4.3 Slow Fly Prop.

For further details please see the specification and recommended setups below. We stock the full range of AXi electric motors including the 2203/40 VPP and the new AXi 2204/28.

Made in Czech Republic.

Other AXi motors in this series: AXi 2203/40 VPP, AXi 2203/52, AXi 2203/RACE

Recommended setups for AXi 2203/46
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Aerobatic	220g (7.8oz)	2s	8.5A/20s	Jeti Eco 8 Brushless Controller	8" x 4.30"
3D	160g (5.6oz)	2s	8.5A/20s	Jeti Eco 8 Brushless Controller	8" x 4.30"

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2203/46

*No. of cells (LiPo)*	2
RPM/V	1720 Kv
Max. Efficiency	75%
No load current	0.5A
Maximum Load	8.0A
Internal Resistance	0.285Ω
Diameter	27.70mm (1.09")
Length	21.00mm (0.83")
Shaft Diameter	3.00mm (0.12")
Max. Efficiency Current	2.5 - 7A (>69%)
Glow Equivalent
Weight	19.0g (0.7oz.)
