AXi 2203/52 Gold Line brushless outrunner motor

AXi 2203/52

220352

Click to enlarge image

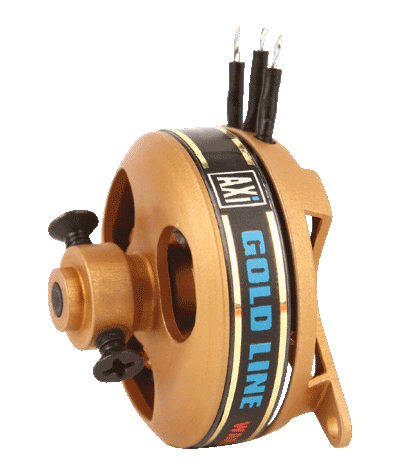

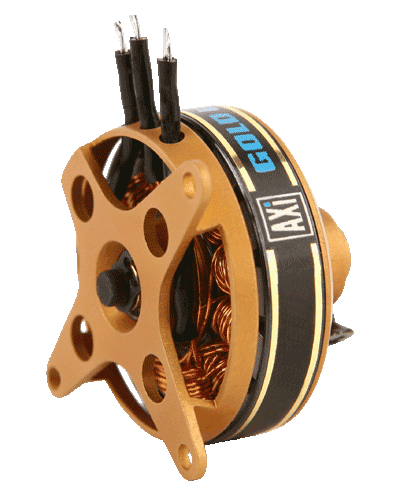

The AXi 2203/52 Gold Line brushless outrunner motor with carbon shaft, integrated prop saver and three mounting lugs weighs only 18g, suitable for F3P models up to 190 grams and light-weight slow flying models up to 260 grams (9.1 oz)

This motor was designed especially for the lightest weight indoor aerobatic models. The high quality 3mm carbon shaft is supported by two ball bearings.

This power unit is suitable for light-weight indoor 3D models up to 150 grams and aerobatic models up to 190g (6.7oz) in weight. Also suitable for slow flying models such as trainers, up to 260 grams.

Made in Czech Republic.

Other AXi motors in this series: AXi 2203/40 VPP, AXi 2203/46, AXi 2203/RACE

Recommended setups for AXi 2203/52
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Trainer	260g (9.2oz)	2s	7.0A/20s	Jeti ECO 08 Brushless Controller	8" x 3.80"
Aerobatic	190g (6.7oz)	2s	7.0A/20s	Jeti ECO 08 Brushless Controller	8" x 4.30"
3D	150g (5.3oz)	2s	7.0A/20s	Jeti ECO 08 Brushless Controller	8" x 4.30"

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2203/52

*No. of cells (LiPo)*	2
RPM/V	1525 Kv
Max. Efficiency	74%
No load current	0.4A
Maximum Load	7.0A
Internal Resistance	0.390Ω

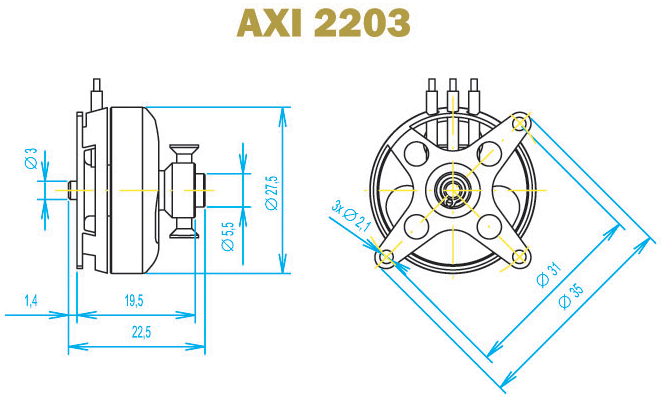

Diameter	27.70mm (1.09")
Length	21.00mm (0.83")
Shaft Diameter	3.00mm (0.12")
Max. Efficiency Current	2 - 5.5A (>69%)
Glow Equivalent
Weight	19.0g (0.7oz.)
