AXi 2203/RACE

2203R
  • AXi 2203/RACE
  • AXi 2203/RACE image #2
  • AXi 2203/RACE image #3
Click to enlarge image

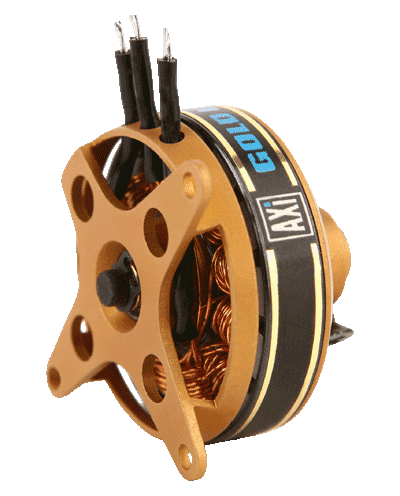

The AXi 2203/RACE Gold Line brushless outrunner motor with carbon shaft, integrated prop saver and three mounting lugs weighs just 18g and is probably the most popular motor produced by Model Motors. The most striking thing about this motor? It is extremely quiet in operation which makes the power output even more satisfying!

This power unit was tuned by Gernot Bruckmann to be especially suitable for fast indoor models. The mounting lugs allow easy mounting to the fuselage of your model and fast centering of the motor. The quality and light-weight 3mm carbon shaft is supported by two ball bearings.

Many indoor modellers are using the 2203/RACE for a slightly hotter setup in indoor AM type models such as the RC Factory Jazz with 2-cell Li-Poly batteries and an 8"x4.3" propeller. We actually recommend the 2203/46 for the Jazz for slightly more efficiency on the 8" propeller and a little more torque.

The AXi 2203/RACE is great for light racing models and other fast indoor aerobatic models weighing up to 170g (6 oz.) and has also been used very successfully in models such as the Sultimate (See video below!)

Made in Czech Republic.

Other AXi motors in this series: AXi 2203/40 VPPAXi 2203/46AXi 2203/52

Deals

  • 1 x AXi 2203/RACE
    AXi 2203/RACE
  • +

  • AXi 2203 Series Motor Mount
$71.65 $71.35
Save $0.30

  • 1 x AXi 2203/RACE
    AXi 2203/RACE
  • +

  • Jeti Advance 08 Pro
$100.36 $98.62
Save $1.74

  • 1 x AXi 2203/RACE
    AXi 2203/RACE
  • +

  • AXi 2203 Series Motor Mount
  • +

  • Jeti Advance 08 Pro
$106.28 $104.24
Save $2.02
Recommended setups for AXi 2203/RACE
Type Model Weight Cells Max. Current Jeti ESC Propeller
Aerobatic 170g (6.0oz) 2s 9.0A/20s Jeti Eco 8 Brushless Controller 7" x 3.50" propeller search

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2203/RACE

No. of cells (LiPo)  2
RPM/V  2300 Kv
Max. Efficiency  74%
No load current  0.6A
Maximum Load  9.0A
Internal Resistance  0.220Ω
Diameter  27.70mm (1.09")
Length  21.00mm (0.83")
Shaft Diameter  3.00mm (0.12")
Max. Efficiency Current  3 - 7.5A (>69%)
Glow Equivalent
Weight  19.0g (0.7oz.)

Videos

Click the links below to play a video in an embedded player.

youtube link  AXi 2203/RACE powered Sultimate V2 from pauzuolis-rc.com

Reviews of AXi 2203/RACE

Race riot - By Pete
5/5 stars
Can see why the big boys use these little gems.
Mind blowing performance & so quiet!! Never gets hot
even with all that power. 6 stars on this motor.

The answer to all shocky needs... - By Shahid Banglawala
5/5 stars
Very lightweight, measured on my precision scales the weight matches up with AXI's. Bonkers power, so much so I had to limit the throttle as the excess was not needed. Runs cool to the touch and dead quiet, unlike other similar motors on the market.

Well made and at a good price, service from Wingman is spot on, need I say more?
