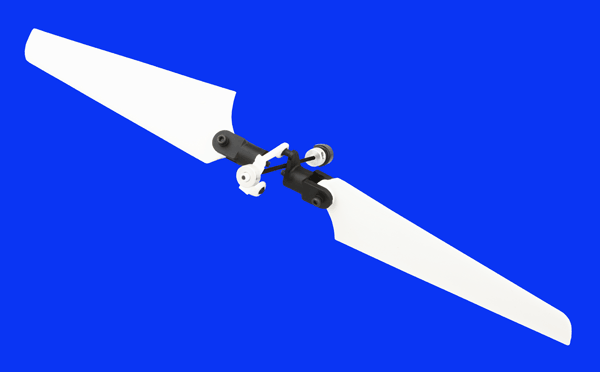

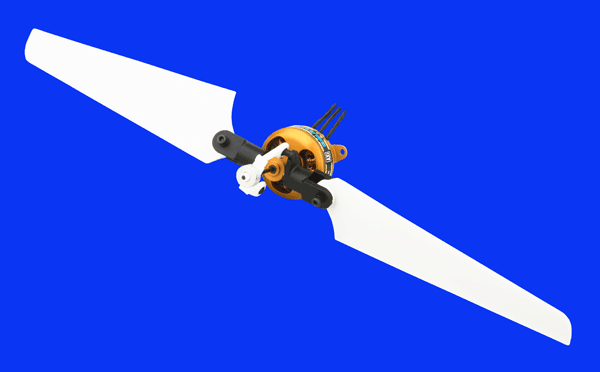

AXi EVP Unit for 2204/54

The Model Motors pre-assembled EVP (Electric Variable Pitch) system is manufactured using precise parts, 5 ball bearings, a carbon connecting rod and an optimized propeller for best performance with special AXi EVP motors with hollow shafts.

This unit is recommended for model airplanes of around 200g (7oz.). From parts contained in this package you will assemble an EVP propeller that is designed for the AXi 2204/54 EVP motor.

Features of the EVP unit for AXi 2204/54 EVP

• 5 ball bearings
• Carbon connecting rod
• Optimized propeller blades
• New bearing element for easy setting
• Professional design

In order to use this EVP unit, the following parts are required: -

• Model Motors AXi EVP hollow shaft brushless motor (AXi 2204/54)
• A lightweight micro servo for controlling the propeller pitch, such as the Hitec HS-55
• 6-channel receiver
• Using specialized transmitters for helicopters is advantageous, because of possible programming of propeller pitch and motor RPM influences
• Recommended controller is JETI Advance Plus 8A (without governor)
• High discharge lithium polymer batteries from 340mAh to 450mAh
• RC airplane with substantial airframe to prevent damage during fast pitch changes
