AXi 2204/54 EVP Gold Line brushless outrunner motor

AXi 2204/54 EVP

220454EVP

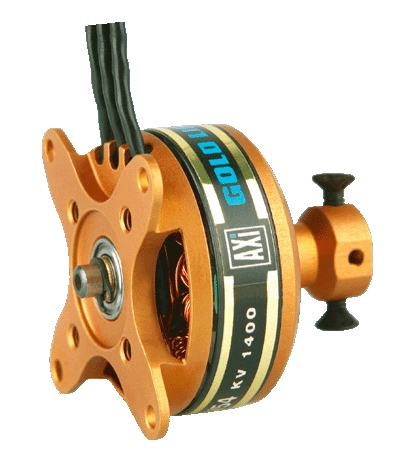

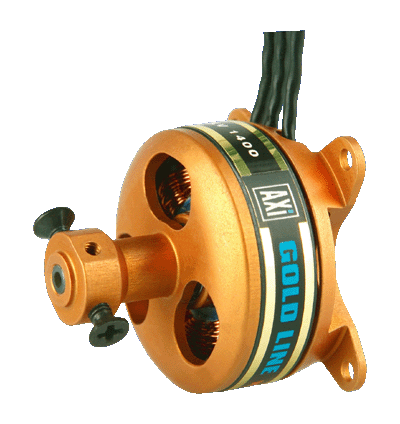

Click to enlarge image

The AXi 2204/54 EVP Gold Line brushless motor from Model Motors is a light-weight and powerful variable pitch ready unit with a hollow, hardened steel shaft. This motor was designed especially for the AXi 2204/54 EVP Unit

Providig thrust up to 300g (10.5oz.) in both directions provides an opportunity to try a new dimension of aerobatic flying!

This power unit is suitable for 3D EVP models up to 200g (7oz.) in weight.

AXi EVP unit not included (EVPU04).

Made in Czech Republic.

Other AXi motors in this series: AXi 2204/28, AXi 2204/54

Recommended setups for AXi 2204/54 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Trainer	300g (10.6oz)	3s	8.0A/30s	Jeti Eco 8 Brushless Controller	7.5" x 3.50"
Aerobatic	260g (9.2oz)	3s	8.0A/30s	Jeti Eco 8 Brushless Controller	8" x 4"
3D	170g (6.0oz)	2s	8.0A/30s	Jeti Eco 8 Brushless Controller	9" x 5"
3D	220g (7.8oz)	3s	8.0A/30s	Jeti Eco 8 Brushless Controller	9" x 3.80"
3D EVP	200g (7.1oz)	3s	8.0A/30s	Jeti Eco 8 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2204/54 EVP

*No. of cells (LiPo)*	3
RPM/V	1400 Kv
Max. Efficiency	77%
No load current	0.4A
Maximum Load	7.0A
Internal Resistance	0.320Ω

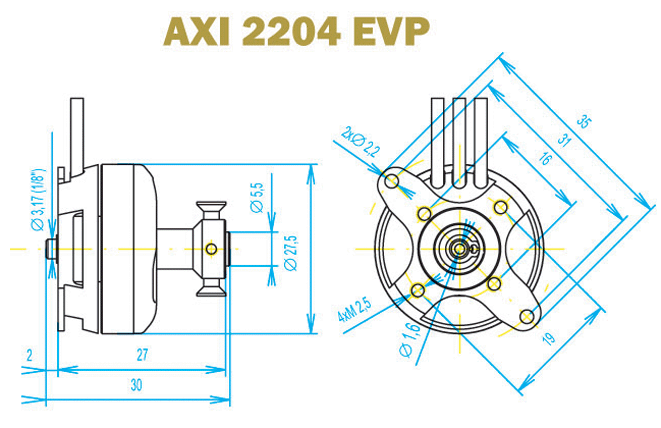

Diameter	27.70mm (1.09")
Length	23.00mm (0.91")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	2 - 6A (>67%)
Glow Equivalent
Weight	26.0g (0.9oz.)
