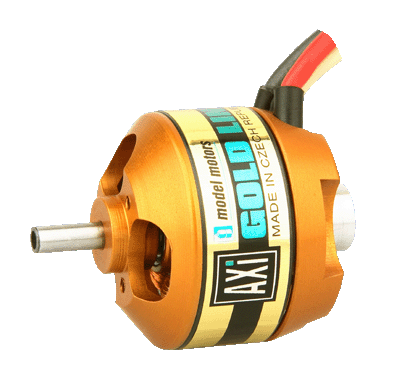

AXi 2208/20 EVP Gold Line brushless outrunner motor

AXi 2208/20 EVP

220820EVP

Click to enlarge image

The AXI 2208/20 EVP Gold Line brushless outrunner motor is suitable for models up to 260g in weight. AXI EVP outrunner motors were designed for use with EVP units (Electric Variable Pitch propeller) and provide the opportunity to try a new level of amazing aerobatic flying.

To support the AXI EVP Unit, these high performance gold line motors have a hardened steel hollow shaft.

In the box: -

AXi 2208/20 EVP outrunner
Mounting template
Manual

Not included with AXi 2208/20 EVP motors: -

Optional radial mount set (RMS22)
Optional prop adaptor (PH317)

Other AXi motors in this series: AXi 2208/20, AXi 2208/26, AXi 2208/26 EVP, AXi 2208/34, AXi 2208/34 EVP

Recommended setups for AXi 2208/20 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
3D	270g (9.5oz)	2s	16.0A/60s	Jeti Eco 18 Brushless Controller	8" x 3.80"
Aerobatic	350g (12.3oz)	2s	16.0A/60s	Jeti Eco 18 Brushless Controller	8" x 4"
Trainer	450g (15.9oz)	2s	16.0A/60s	Jeti Eco 18 Brushless Controller	7.5" x 4"
Heli	340g (12.0oz)	3s	16.0A/60s	Jeti Eco 18 Brushless Controller	-
3D EVP	270g (9.5oz)	2s	16.0A/60s	Jeti Eco 18 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2208/20 EVP

*No. of cells (LiPo)*	2-3
RPM/V	1820 Kv
Max. Efficiency	82%
No load current	0.8A
Maximum Load	16.0A
Internal Resistance	0.089Ω
Diameter	27.70mm (1.09")
Length	26.00mm (1.02")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	8 - 12A (>75%)
Glow Equivalent
Weight	45.0g (1.6oz.)
