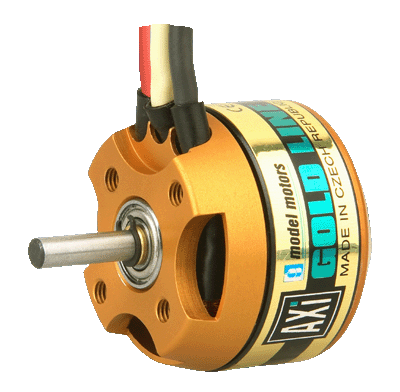

The AXi 2208/20 Gold Line brushless outrunner motors are surprisingly powerful, yet weigh only 45g with power cables. Suitable for all models of 300-400 size, including small helicopters.

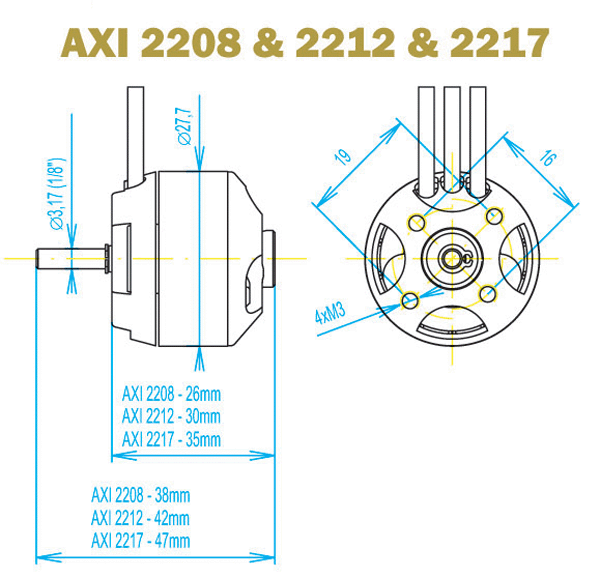

These motors have a hardened steel shaft (3.17mm in diameter) which is supported by two large ball bearings, ensuring excellent mechanical reliability with front or radial mounting.

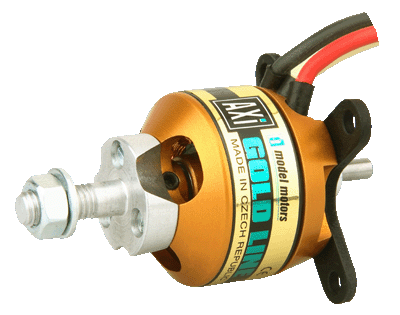

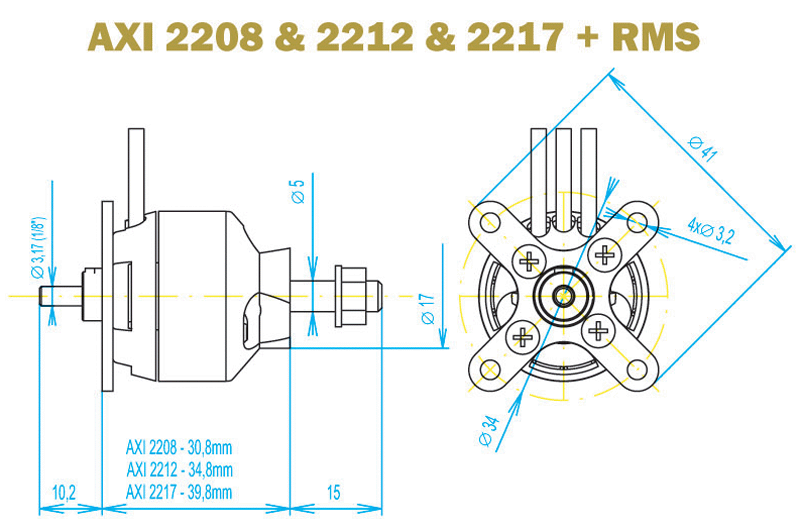

The motors are designed such that the prop is mounted on the shaft, but a radial mount set is available as an option, to allow the motor to be mounted directly onto the firewall. This optional radial mount set includes: mounting flange, propeller adaptor, a securing collar and screws.
In the box: -
- AXi 2208/20 outrunner
- Mounting template
- Manual
Not included with the AXi 2208/20: -
- Optional radial mount set (RMS22)
- Optional prop adaptor (PH317)
Made in Czech Republic.
Other AXi motors in this series:
AXi 2208/20 EVP, AXi 2208/26, AXi 2208/26 EVP, AXi 2208/34, AXi 2208/34 EVP
Do not exceed the recommended propeller sizes.
Always use slow-fly type propellers with AXi 22xx series motors.
