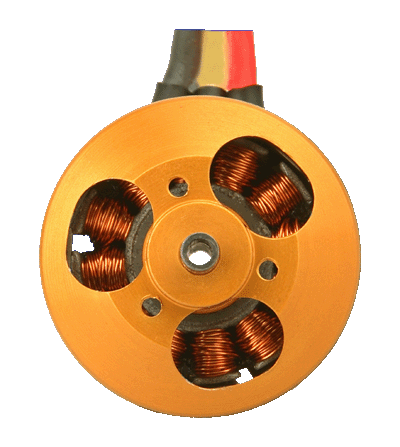

AXi 2208/26 EVP Gold Line brushless outrunner motor

AXi 2208/26 EVP

220826EVP

Click to enlarge image

The AXI 2208/26 EVP Gold Line brushless outrunner motor is suitable for models up to 280g in weight. AXI EVP motors were designed for use with AXI EVP units (Electric Variable Pitch propeller) and provide the opportunity to try a new level of amazing aerobatic flying.

To support the AXI EVP Unit, these motors have a hardened steel hollow shaft.

Other AXi motors in this series: AXi 2208/20, AXi 2208/20 EVP, AXi 2208/26, AXi 2208/34, AXi 2208/34 EVP

Recommended setups for AXi 2208/26 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Trainer	450g (15.9oz)	2s	11.0A/60s	Jeti Eco 12 Brushless Controller	8" x 3.80"
Aerobatic	380g (13.4oz)	3s	11.0A/60s	Jeti Eco 12 Brushless Controller	7" x 4"
3D	320g (11.3oz)	3s	11.0A/60s	Jeti Eco 12 Brushless Controller	8" x 3.80"
3D EVP	370g (13.1oz)	3s	11.0A/60s	Jeti Eco 12 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2208/26 EVP

*No. of cells (LiPo)*	2-3
RPM/V	1420 Kv
Max. Efficiency	82%
No load current	0.6A
Maximum Load	11.0A
Internal Resistance	0.155Ω
Diameter	27.70mm (1.09")
Length	26.00mm (1.02")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	5 - 9A (>74%)
Glow Equivalent
Weight	45.0g (1.6oz.)
