AXi 2212/20 EVP Gold Line brushless outrunner motor

AXi 2212/20 EVP

221220EVP

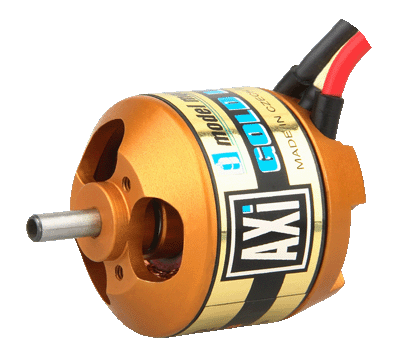

Click to enlarge image

The AXi 2212/20 EVP Gold Line brushless outrunner is suitable for models up to 300g in weight. AXI EVP motors are designed for use with AXI EVP units (Electric Variable Pitch propeller) and provide the opportunity to try a new level of amazing aerobatic flying.

To support the AXI EVP unit, these motors have a hardened steel hollow shaft.

Other AXi motors in this series: AXi 2212/12, AXi 2212/20, AXi 2212/26, AXi 2212/26 EVP, AXi 2212/34, AXi 2212/9D

Recommended setups for AXi 2212/20 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Aerobatic	600g (21.2oz)	3s	16.0A/60s	Jeti Eco 40 Brushless Controller	9" x 4.50"
3D	400g (14.1oz)	3s	16.0A/60s	Jeti Eco 18 Brushless Controller	10" x 4"
Sailplane	800g (28.2oz)	2s	16.0A/60s	Jeti Eco 18 Brushless Controller	10" x 5"
Hotliner	650g (22.9oz)	3s	16.0A/60s	Jeti Eco 40 Brushless Controller	9" x 5"
3D EVP	400g (14.1oz)	3s	16.0A/60s	Jeti Eco 18 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2212/20 EVP

*No. of cells (LiPo)*	2
RPM/V	1150 Kv
Max. Efficiency	82%
No load current	0.7A
Maximum Load	16.0A
Internal Resistance	0.135Ω

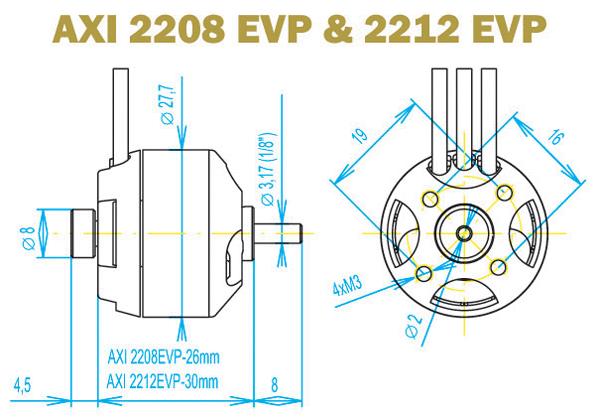

Diameter	27.70mm (1.09")
Length	30.00mm (1.18")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	6 - 12A (>75%)
Glow Equivalent
Weight	57.0g (2.0oz.)
