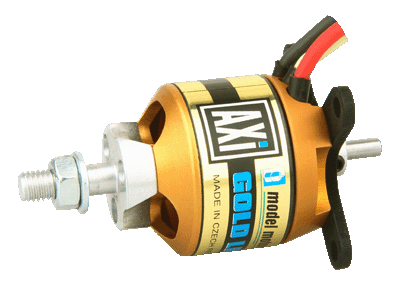

The AXi 2212/20 brushless outrunner motor will surprise you with its very high power. These small and very robust, but light weight (57g with power cables) brushless outrunner motors with rotating case are suitable for microhelicopters and fast aerobatic models of 300-400 size.
The hardened steel 3.17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI Gold Line 2212/20 brushless outrunner motors offers extremely high efficiency and high load capability for its weight.

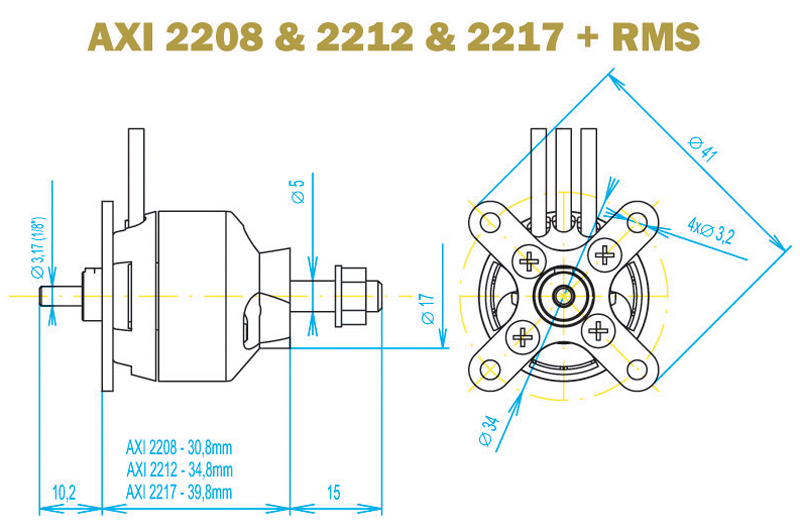

AXI Gold Line with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provision for radial mounting (see picture).
The optional radial mount set includes: mounting plate, propeller adapter, securing collar, and screws (sold separately)
Use two AXi 2212/20 in the Multiplex TwinStar II, for great performance! (e.g. 2 x AXi 2212/20, 2 x Jeti Advance 30 and a 3-cell lithium polymer battery of approximately 2500mAh)
In the box: -
- AXi 2212/20 outrunner
- Mounting template
- Manual
Not included with the AXi 2212/20: -
- Optional radial mount set (RMS22)
- Optional prop adaptor (PH317)
Made in Czech Republic.
Other AXi motors in this series:
AXi 2212/12, AXi 2212/20 EVP, AXi 2212/26, AXi 2212/26 EVP, AXi 2212/34, AXi 2212/9D
Do not exceed the recommended propeller sizes.
Always use slow-fly type propellers with AXi 22xx series motors.
