AXi 2212/26 EVP Gold Line brushless outrunner motor

AXi 2212/26 EVP

221226EVP

Click to enlarge image

The AXi 2212/26 EVP Gold Line brushless outrunner motor is suitable for models up to 350g in weight. The AXI EVP motors are designed for use with AXI EVP units (Electric Variable Pitch propeller) and provide the opportunity to try a new level of amazing aerobatic flying.

To support the AXI EVP unit, these motors have a hardened steel hollow shaft.

Other AXi motors in this series: AXi 2212/12, AXi 2212/20, AXi 2212/20 EVP, AXi 2212/26, AXi 2212/34, AXi 2212/9D

Recommended setups for AXi 2212/26 EVP
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Trainer	500g (17.6oz)	2s	12.0A/60s	Jeti Eco 12 Brushless Controller	11" x 5.50"
Trainer	650g (22.9oz)	3s	12.0A/60s	Jeti Eco 12 Brushless Controller	10" x 5"
Aerobatic	500g (17.6oz)	3s	12.0A/60s	Jeti Eco 12 Brushless Controller	9" x 6"
3D	450g (15.9oz)	3s	12.0A/60s	Jeti Eco 18 Brushless Controller	10" x 3.80"
Sailplane	900g (31.7oz)	3s	12.0A/60s	Jeti Eco 18 Brushless Controller	10" x 4"
3D EVP	380g (13.4oz)	3s	12.0A/60s	Jeti Eco 12 Brushless Controller	EVP UNIT

Do not exceed the recommended propeller sizes. Always use slow-fly type propellers with AXi 22xx series motors.

Technical Details for AXi 2212/26 EVP

*No. of cells (LiPo)*	3
RPM/V	920 Kv
Max. Efficiency	80%
No load current	0.5A
Maximum Load	12.0A
Internal Resistance	0.210Ω

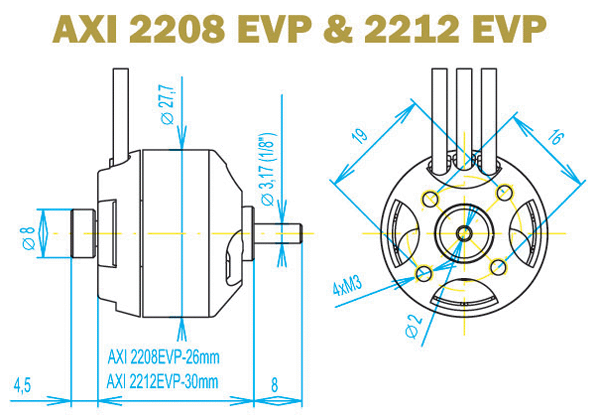

Diameter	27.70mm (1.09")
Length	30.00mm (1.18")
Shaft Diameter	3.17mm (0.12")
Max. Efficiency Current	5 - 9A (>74%)
Glow Equivalent
Weight	57.0g (2.0oz.)
