AXi 2820/8 Gold Line brushless outrunner motor

AXi 2820/8

282008

Click to enlarge image

The AXI 2820/08 Gold Line brushless outrunner is a high torque brushless motor with rotating drum and high power neodymium magnets suitable for Hotliners up to 1400g and fast aerobatic models up to 2300g in weight.

Due to its high torque this motor is capable of turning large propellers with a high level of efficiency and without the need for a gearbox. Hardened steel shaft is supported by three ball bearings.

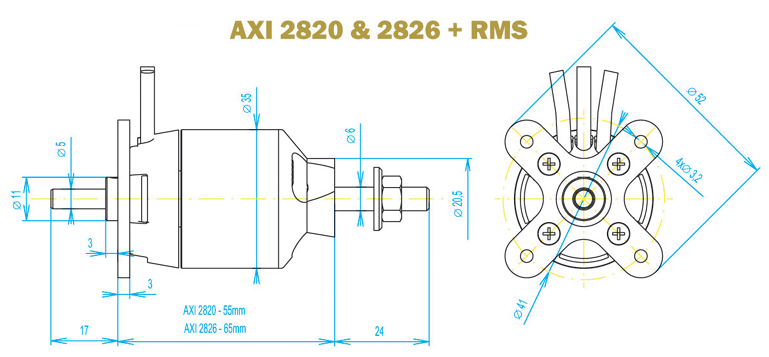

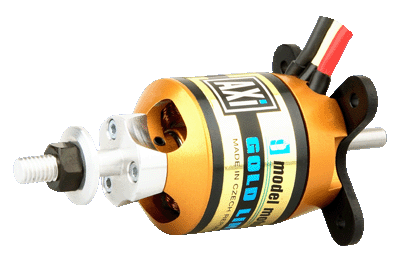

A new feature in the AXI design is a provision for radial mounting (see picture). The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Other AXi motors in this series: AXi 2820/08PG, AXi 2820/10, AXi 2820/12, AXi 2820/14

Recommended setups for AXi 2820/8
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
Aerobatic	2200g (77.6oz)	3s	55.0A/60s	Jeti Advance 70 Pro	9.5" x 5"
3D	1300g (45.9oz)	3s	55.0A/60s	Jeti Advance 70 Pro	10" x 4"
Sailplane	2000g (70.5oz)	3s	55.0A/60s	Jeti Advance 70 Pro	9" x 5"
Hotliner	1400g (49.4oz)	3s	55.0A/60s	Jeti Advance 70 Pro	8" x 7"
Heli	1000g (35.3oz)	3s	55.0A/60s	Jeti Advance 70 Pro	-

Do not exceed the recommended propeller sizes.

Technical Details for AXi 2820/8

*No. of cells (LiPo)*	2-3
RPM/V	1500 Kv
Max. Efficiency	82%
No load current	3.3A
Maximum Load	55.0A
Internal Resistance	0.026Ω

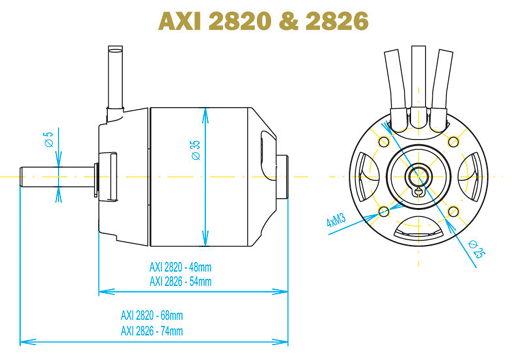

Diameter	35.00mm (1.38")
Length	48.00mm (1.89")
Shaft Diameter	5.00mm (0.20")
Max. Efficiency Current	25 - 37A (>75%)
Glow Equivalent	.32
Weight	151.0g (5.3oz.)
