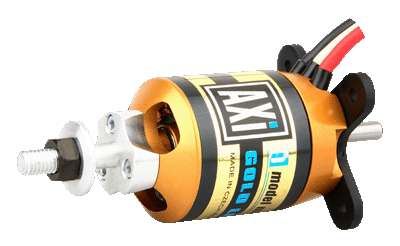

The AXi 2826/10 Gold Line brushless outrunner motor is a 14-pole electric motor with neodymium magnets, manufactured from best quality materials in the Czech Republic. The hardened steel shaft is supported by three ball bearings and the robust and lightweight construction ensure a long life for this motor.
For sparkling performance in sports and aerobatic models up to 2600g (91.7oz), use the 2826/10 on 4s LiPo with a 12"x7" or 13"x6" or 13"x6" with 4s A123 and Jeti Advance 70 controllers.
The AXi 2826/10 performs very efficiently in the Multiplex Cularis when combined with a 3s lithium polymer battery and a 12"x7 folding propeller. For stellar performance on 3s, the propeller can be increased up to 14"x7" at the expense of efficiency. Also suitable for the Black Horse Renegade with a 4s LiPo and a 12"x7" propeller for excellent aerobatic performance.

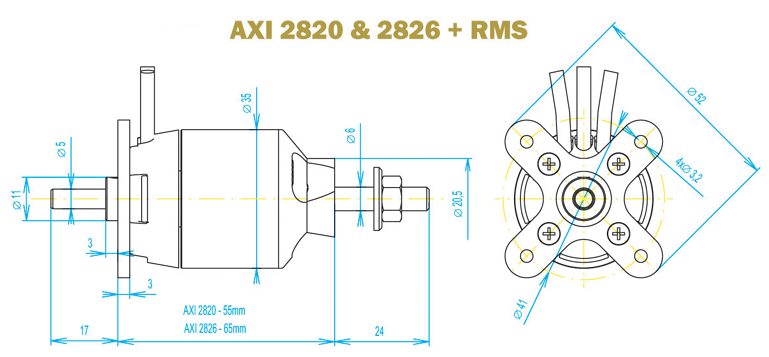

The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws. For further details please see the specification and recommended setups below. We stock the complete range of AXi motors.
Included in the box: -
- Model Motors AXi 2826/10 Motor
- Manual
- Mounting template
Not included with AXi 2826/10: -
- Optional Radial Mount Set (RMS2820)
- Optional prop holder (PH5)
Other AXi motors in this series:
AXi 2826/08PG, AXi 2826/12, AXi 2826/12 Short-Shaft, AXi 2826/6, AXi 2826/8
Do not exceed the recommended propeller sizes.
Axi 2826/10 pitts 12 or mustang - By jool2metz
Hi , this axi work verry well on my pitts 12 (E-flite) , on 4s with 11x5or6 , and in 3S with 12x8 or 13x6
propp are JXF elec wood propeler
quite more efficient than APC-E prop
in first time i use it on a hyperion mustang 25e , with 12x8 prop , very good torque for begin to fly and fast ! now i used axi 2826/08 on this plane , more speed fly
---------------------------------------------
Hello , cet axi fonctionne a merveille sur mon pitts 12 de chez e-flite (1320g sans l accu)en 4S 11x5ou6 et en 3S avec 12x8 ou 13x6
j utilise des helices JXF en bois special electrique , un peu plus legere et plus efficace que les APC-E
en premier temps , j ai utilisé cet axi sur mon mustang hyperion , en 3S avec 12x8 , tres coupleux pour debuter avec cet avion , et volait assé vite , maintenant j utilise un axi 2826/08 , encore plus rapide
