AXi 2826/6

28266

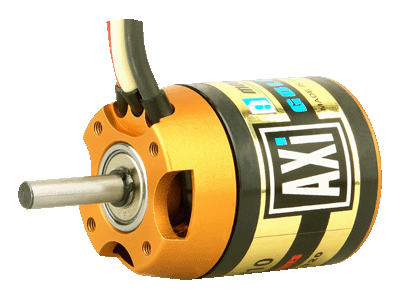

  • AXi 2826/6
  • AXi 2826/6 image #2
  • AXi 2826/6 image #3

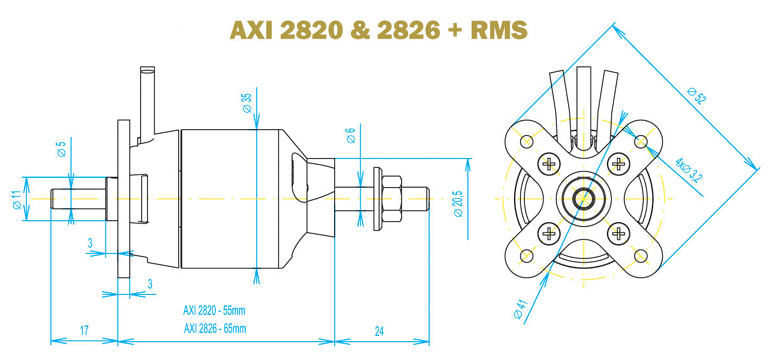

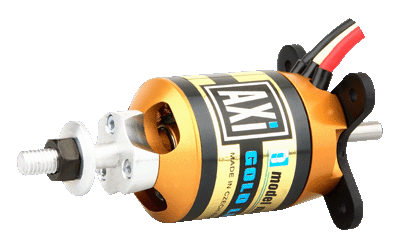

  • AXi 2826 with optional radial mount set
  • AXi 2826/6 image #5
Click to enlarge image

The Model Motors AXi 2826/6 brushless outrunner is a high performance electric motor with a rotating case, manufactured using neodymium magnets and advanced technologies. The hardened steel shaft of the motor is supported by three ball bearings, ensuring a long service life for this quality motor.

This particular motor offers the highest RPM per volt (Kv) of the AXi 2826 series, at 1500 Kv. The AXi 2826/6 has 14 poles.

Included in the box: -

  • Model Motors AXi 2826/6 Motor
  • Manual
  • Mounting template

Not included with AXi 2826/6: -

  • Optional Radial Mount Set (RMS2820)
  • Optional prop holder (PH5)

For further details regarding the AXi 2826/6, please refer to the full specifications below.

Other AXi motors in this series: AXi 2826/08PGAXi 2826/10AXi 2826/12AXi 2826/12 Short-ShaftAXi 2826/8

Recommended setups for AXi 2826/6
Type Model Weight Cells Max. Current Jeti ESC Propeller
Sailplane 2200g (77.6oz) 2s 60.0A/30s Jeti Advance 70 Pro 12" x 8" propeller search
Sailplane 2500g (88.2oz) 3s 60.0A/30s Jeti Advance 70 Pro 10" x 6" propeller search

Do not exceed the recommended propeller sizes.

Technical Details for AXi 2826/6

No. of cells (LiPo)  2-3
RPM/V  1500 Kv
Max. Efficiency  82%
No load current  3.0A
Maximum Load  65.0A
Internal Resistance  0.022Ω
Diameter  35.00mm (1.38")
Length  54.00mm (2.13")
Shaft Diameter  5.00mm (0.20")
Max. Efficiency Current  30-45A (>75%)
Glow Equivalent  .35-.40
Weight  181.0g (6.4oz.)

Reviews of AXi 2826/6

Write your own review of this item.

$101.26 exc. VAT

Add to basket
