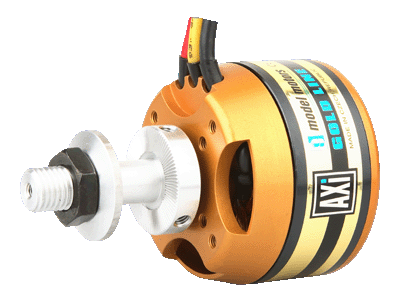

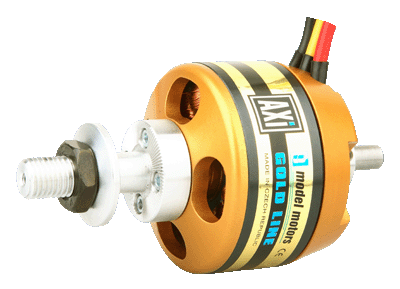

click thumbnail to enlarge photos of AXi 5320/28

The powerful and efficient AXI 5320/28 Gold Line brushless outrunner motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials.

These motors are suitable for large sailplanes weighing up to 10000g and sports aerobatic models up to 7000g. The lack of gearbox noise makes these motors particularly suitable for scale models.

The hardened steel 8mm shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. Due to its high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.

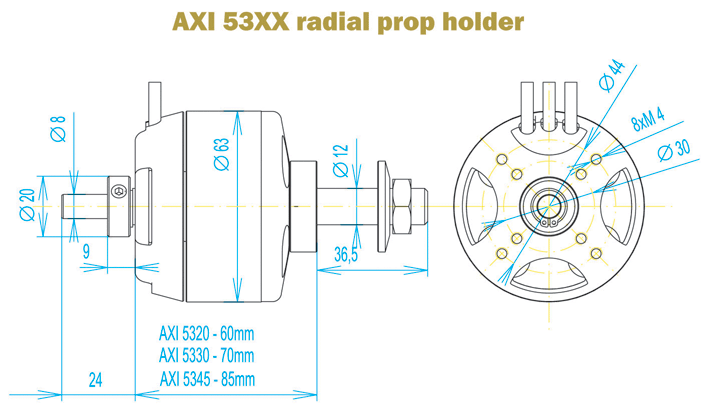

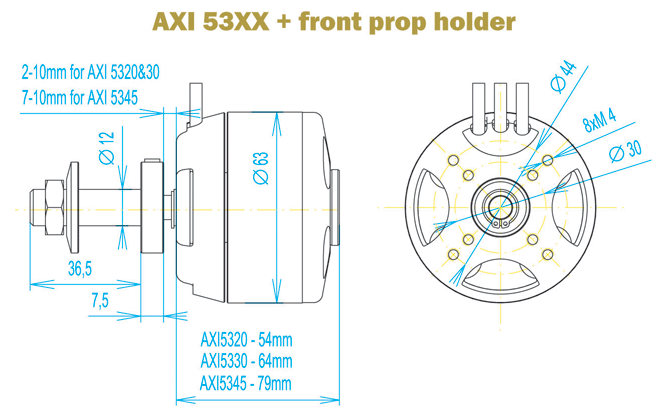

The AXI 5320/28 offers front and reverse (radial) mounting options. Two prop adapters for both mounting options are included as standard.
All of our products are shipped from the UK. For shipping/delivery charges, add any items to your basket and you can see the delivery options beneath your items. You can pay with PayPal, MasterCard or Visa. You can checkout using PayPal even if you do not have a PayPal account.

Registration/login is not required to shop with us!

We will be closed from Friday 19th to January 5th 2015 for Christmas Holidays. Orders received after 3pm on Friday 19th will not be processed until January 5th. Please submit orders before 3pm (12:30 for DHL shipments) on the 19th for despatch before Christmas!

Other AXi motors in this series: AXi 5320/18AXi 5320/34

Recommended brushless power setups for AXi 5320/28.
Need help finding a brushless motor setup? Try our motor calculator tool.

Model Model Weight Cells Max. Current Jeti ESC Propeller
Trainer 6500g (229.3oz) 8s 65.0A/30s Jeti Spin Pro 80 20" x 10"
Aerobatic 5200g (183.4oz) 8s 65.0A/30s Jeti Spin Pro 80 19" x 12"
3D 4000g (141.1oz) 8s 65.0A/30s Jeti Spin Pro 80 20" x 10"
Sailplane 7500g (264.6oz) 8s 65.0A/30s Jeti Spin Pro 80 18.5" x 12"

Do not exceed the recommended propeller sizes.

Technical Details for AXi 5320/28

No. of cells (LiPo)10
RPM/V249 Kv
Max. Efficiency92%
No load current1.4A
Maximum Load50.0A
Internal Resistance0.057Ω
Diameter63.00mm (2.48")
Length54.00mm (2.13")
Shaft Diameter8.00mm (0.31")
Max. Efficiency Current
Glow Equivalent1.20
Weight495.0g (17.5oz.)

world models thunderbolt
5/5 stars
By Austin Ogden-Wild
this motor run the plane as good as a 30cc petrol engine would

8s 5000mah lipos

20x10 or 19x12

good for 8 to 10 mins flight times

Write a review

£147.46 ex. VAT     £176.95 inc. VAT
in stock
Add to basket
Total shipping price if this item is added from £3.53 to £21.60
