AXi 5320/34

532034
  • AXi 5320/34
  • AXi 5320/34 image #2
  • AXi 5320/34 image #3
  • AXi 5320/34 image #4
Click to enlarge image

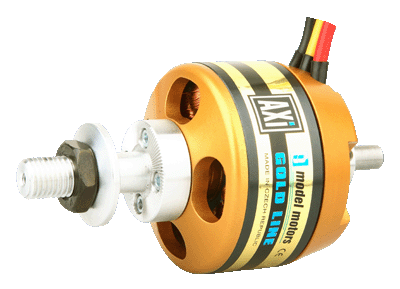

The powerful and efficient AXi 5320/34 brushless outrunner motors with neodymium magnets and a rotating case are manufactured using the latest technology from the finest quality materials.

This outrunner is suitable for large sailplanes weighing up to 7500g and sports aerobatic models up to 5300g. The lack of gearbox noise makes this motor particularly suitable for scale models.

The hardened steel 8mm shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. Due to its high torque characteristics this motor is capable of turning large propellers with a high level of efficiency, and without the need for a gearbox.

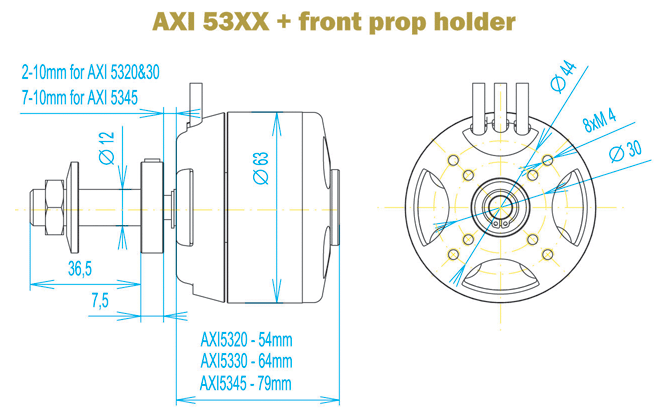

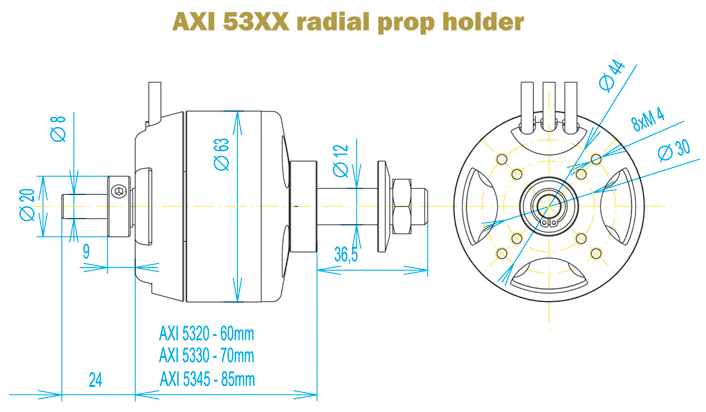

The AXi 5320/34 brushless outrunner offers front and reverse (radial) mounting options. Prop adapters for both mounting options are included as standard.

All items are shipped from the UK. To see shipping/delivery charges, simply add items to your basket and see the shipping options beneath your items. You can pay with PayPal, Google Wallet, MasterCard or Visa.

Other AXi motors in this series: AXi 5320/18AXi 5320/28

Recommended setups for AXi 5320/34
Type Model Weight Cells Max. Current Jeti ESC Propeller
Trainer 6000g (211.6oz) 8s 50.0A/30s Jeti Spin Pro 80 19" x 12" propeller search
Aerobatic 5300g (187.0oz) 10s 50.0A/30s Jeti Advance 77 Pro Opto 19" x 10" propeller search
Sailplane 7500g (264.6oz) 10s 50.0A/30s Jeti Advance 77 Pro Opto 18.5" x 12" propeller search

Do not exceed the recommended propeller sizes.

Technical Details for AXi 5320/34

No. of cells (LiPo)  10
RPM/V  206 Kv
Max. Efficiency  93%
No load current  1.1A
Maximum Load  45.0A
Internal Resistance  0.084Ω
Diameter  63.00mm (2.48")
Length  54.00mm (2.13")
Shaft Diameter  8.00mm (0.31")
Max. Efficiency Current
Glow Equivalent  1.20
Weight  495.0g (17.5oz.)
