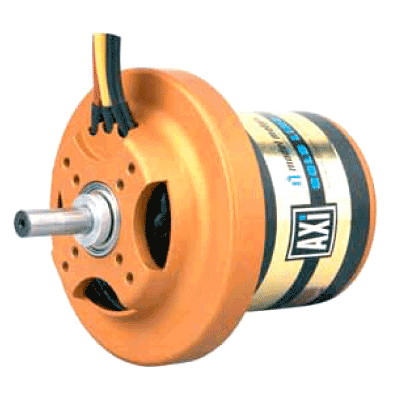

The AXi 5360/20 Gold Line brushless motor was custom designed for realistic flying with scale planes up to 15000g in weight. It has a low RPM but massive amounts of torque.

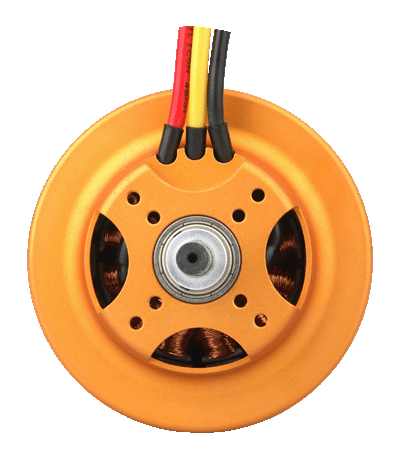

Because of its great success the AXi 5360/20 was released to production. This brushless motors unique design has three ball bearings on the shaft and an additional supporting ball bearing on rotating case. This is an extremely efficient brushless motor.
This motor is only recommended for use with the AXi 30"x20" E Propeller on 10s Li-Poly setups. With this setup the RPM is approximately 3,200 and thrust approx. 12,000g (423 oz)
Recommended setups for AXi 5360/20
| Type |
Model Weight |
Cells |
Max. Current |
Jeti ESC |
Propeller |
|
| Trainer |
15000g (529.1oz) |
10s |
65.0A/30s |
Jeti Advance 90 Pro Opto
|
30" x 20"
|
|
Do not exceed the recommended propeller sizes.
