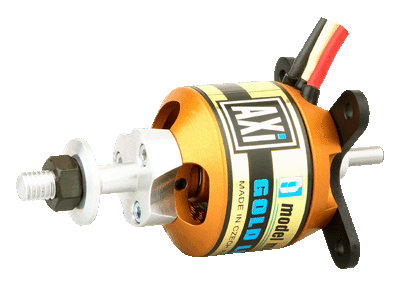

AXi 2814/6D Gold Line brushless outrunner

AXi 2814/6D

28146D

Click to enlarge image

The AXi 2814/6D brushless outrunner motor from Model Motors is specially designed for small fast models from 600-1100g (21-38 oz.) like delta wings and jet-like pushers, such as the Multiplex Funjet and the Jim Fox Blade.

Due to the high RPM/V (KV) of this motor it is not recommended to run the motor without the propeller attached.

The recommended speed controller for this motor is the Jeti Spin 66 or Jeti Advance 70 Pro SB with a 3s Li-Po and a 6"x4 propeller.

Do not run this motor without the propeller attached – the high RPM of this motor can damage your setup when run without load.

Made in Czech Republic.

Other AXi motors in this series: AXi 2814/10, AXi 2814/12, AXi 2814/16, AXi 2814/20, AXi 2814/22 Droidworx Edition, AXi 2814/22 Heavy-Lift

Technical Details for AXi 2814/6D

*No. of cells (LiPo)*	2-3
RPM/V	2850 Kv
Max. Efficiency	80%
No load current	4.5A
Maximum Load	55.0A
Internal Resistance	0.022Ω

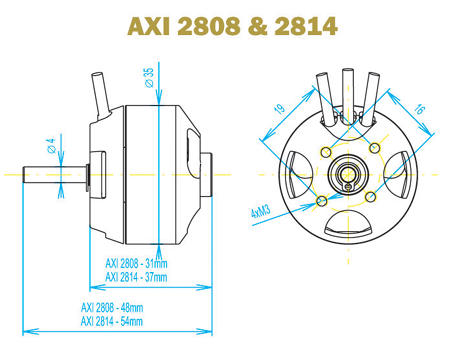

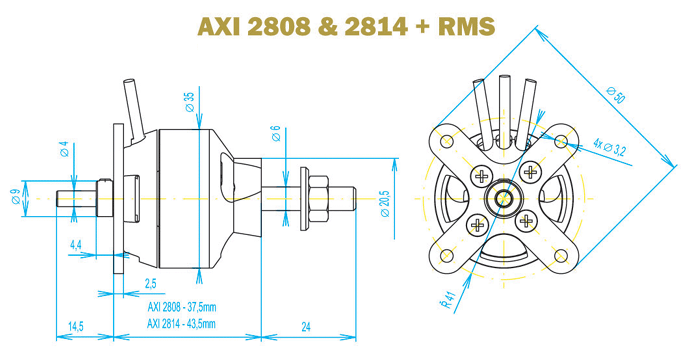

Diameter	35.00mm (1.38")
Length	37.00mm (1.46")
Shaft Diameter	4.00mm (0.16")
Max. Efficiency Current	20-45A (<75%)
Glow Equivalent
Weight	106.0g (3.7oz.)
