Double AXi 5330D/20 Gold Line brushless outrunner motor

AXi 5330D/20

533220

Click to enlarge image

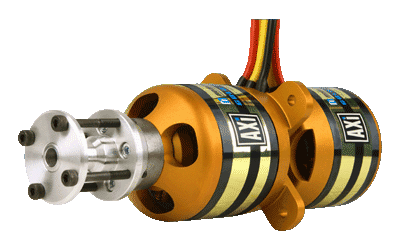

The Double AXi 5330/20 motor is a special power unit based on two AXi 5330 motors. This brushless motor was custom designed for aerobatic models weighing up to 16,000g (564.4 oz) and 3D models up to 12,000g (423.3 oz)

The maximum burst power of this unit is almost 6,000 watts.

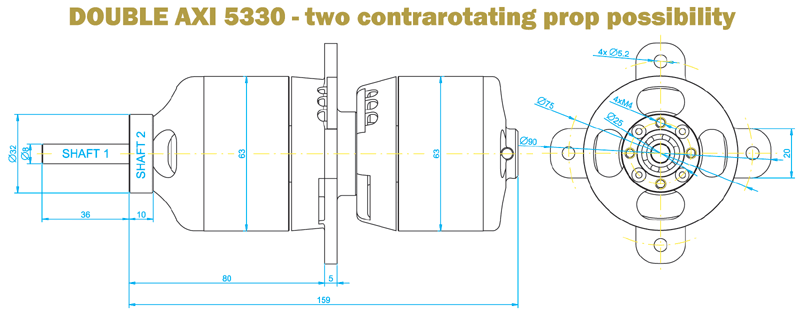

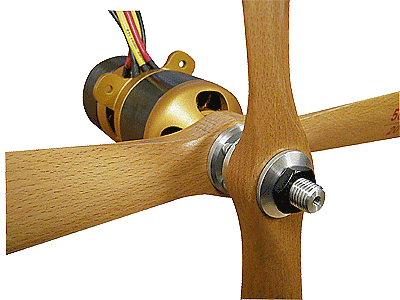

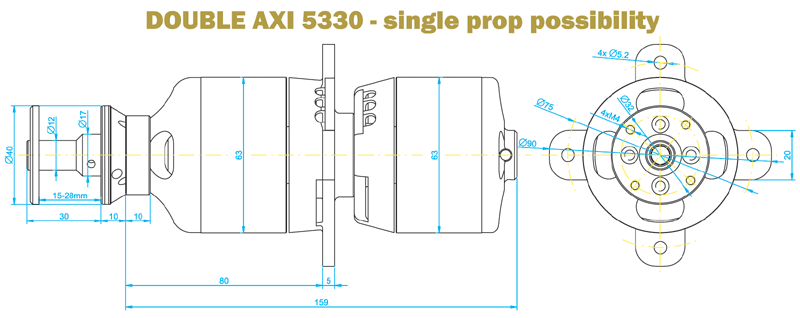

The Double AXi 5330/20 Gold Line arrives for use with a single propeller but can also be adapted for contra-rotating propellers by having both motors rotate in opposite directions – in this case a special propeller adaptor must be made.

Recommended setups for AXi 5330D/20
Type	Model Weight	Cells	Max. Current	Jeti ESC	Propeller
3D	12000g (423.3oz)	10s	75.0A/20s	Jeti Advance 90 Pro Opto	26" x 10"
Aerobatic	16000g (564.4oz)	10s	75.0A/20s	Jeti Advance 90 Pro Opto	24" x 12"

Do not exceed the recommended propeller sizes.

Technical Details for AXi 5330D/20

*No. of cells (LiPo)*	10
RPM/V	235 Kv
Max. Efficiency	91%
No load current	3.0A
Maximum Load	75.0A
Internal Resistance	0.045Ω
Diameter	63.00mm (2.48")
Length	159.00mm (6.26")
Shaft Diameter	8.00mm (0.31")
Max. Efficiency Current	23-57A (>85%)
Glow Equivalent	4.9-6.1 gasoline
Weight	1,550.0g (54.7oz.)
