MiniAC 1215/20 brushless inrunner motor

MiniAC 1215/20

121520

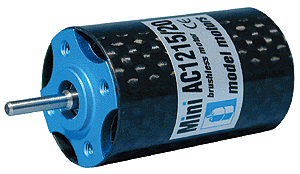

Click to enlarge image

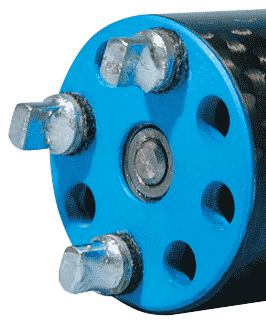

The Model Motors MiniAC 1215/20 is a 300 size brushless motor with neodymium magnets, carbon case and unique solder posts for easy wiring and is manufactured using modern technology from the finest materials.

The motor is suitable for models of 300-480 size up to 850g in weight.

This motor is two pole, high RPM. Use of a VMGM planetary gearbox is recommended.

Recommended model weight: 300-850g

Propeller range & gearbox ratio:
2.64:1; 8.5"x5
3.86:1; 9"x6
4.64:1; 9"x7
6.00:1; 10"x7

The manufacturer of this motor guarantees the product to be free from defects in materials or workmanship for a period of 12 months from the time of its original purchase.

Technical Details for MiniAC 1215/20

*No. of cells (LiPo)*	2-3
RPM/V	3000 Kv
Max. Efficiency	78%
No load current	0.0A
Maximum Load	18.0A
Internal Resistance	0.117Ω

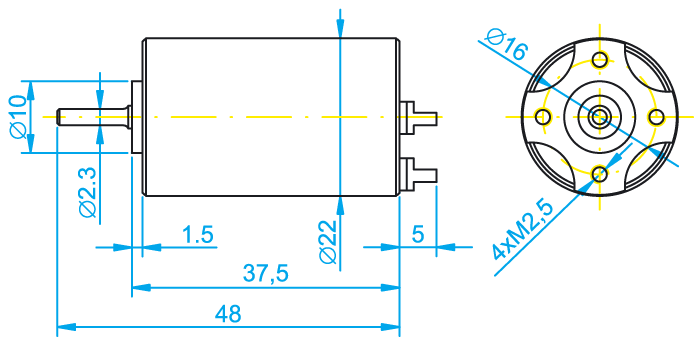

Diameter	22.00mm (0.87")
Length	48.00mm (1.89")
Shaft Diameter	2.30mm (0.09")
Max. Efficiency Current	5-10A (>71%)
Glow Equivalent
Weight	49.0g (1.7oz.)
