Multiplex EasyCub Power Set

Multiplex have specially tuned this power system specifically for their EasyCub, to provide adequate power yet efficient performance for this docile model and other beginners models up to 1,000g (35oz) in weight.

The current draw with a 2-cell/7.4V Li-Poly battery and the included propeller is approximately 17A.

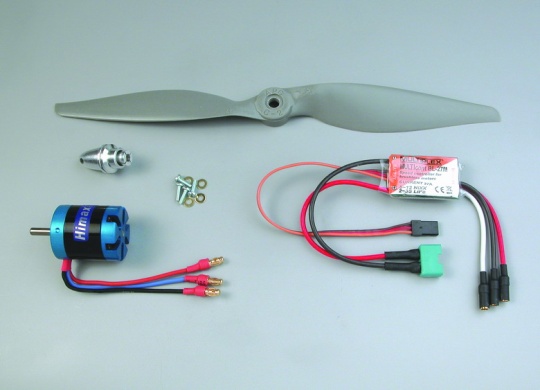

Included in the box are the following components: -

• Himax C2816-1220 brushless motor (333017)
• MULTIcont BL-27/II speed controller (72275)
• 10"x5" APC Thin Electric Propeller
• Prop driver and spinner for 4mm motor shafts (332314)

Multiplex recommend the following batteries: -

• LiBATT eco 2/1-2000 (M6) (157230)
• LiBATT eco 2/1-3000 (M6) (157235)
• LiBATT BX 2/1-2100 (M6) (157130)
• LiBATT BX 2/1-2500 (M6) (157190)
• LiBATT BX 2/1-3200 (M6) (157135)

Higher capacity batteries will offer slightly improved performance due to the additional voltage stability under load. However this will be offset by the increase in weight.
