Multiplex FunJet Ultra Power Set

An ultra high-performance power system directly from Multiplex for their FunJet Ultra! Includes motor, speed controller, propeller and prop driver.

Please use the alloy motor mount included with this setup as it acts as a heat-sink to keep the motor cool during flight – this is a hot setup!

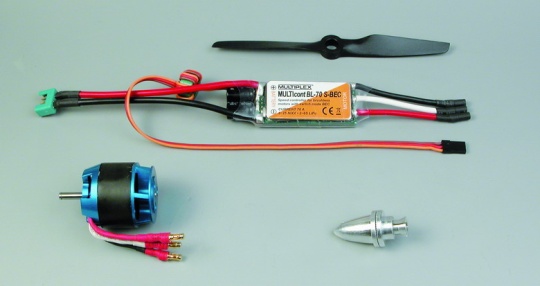

The following parts are included in the box: -

• Brushless motor C3514-2980 (333091)
• MULTIcont BL-70 S-BEC speed controller (72287)
• 6"x5.5" Propeller (733195)
• Prop Driver for 4mm shafts (332329)
• Anodized alloy motor mount (332606)

The recommended battery is a 3-cell/11.1V Li-Poly of around 3,200mAh. Multiplex have their own battery for this setup which is the Li-BATT FX 3/1-3200 (M6) #157371.

Important notes about FunJet Ultra Power Set: -

• Do not run the motor without the propeller attached – yes it sounds insane but the high RPM of this motor can damage the controller when run without load
• Take care to secure the three motor wires within the fuselage using the little clip supplied with the kit
• We recommend dry fitting the power set in the model as much as possible before securing the rear fuselage cover. Check that your battery can reach the controller and that the throttle wire can reach your receiver before securing that lid with CA!
